Product Description

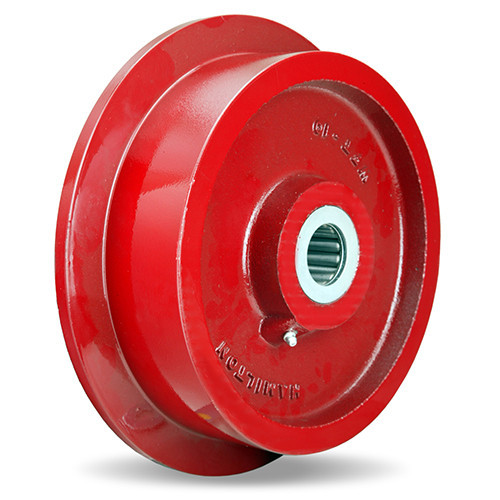

- Hamilton Cast Iron Single Flanged Track Wheel
- 14" x 2-3/4" Face
- 2-3/4" face excluding flange
- 3-5/16" width including flange
- 15-5/8" flange diameter
- 3-1/4" hub length
- 1" roller bearings
- Suggested Rail Size: 2.5 (ASCE 80)
- 3000 pound capacity
- Temperature range: -30° to 320°F
- Shipping weight: 56 pounds
- Availability: Normal lead time is 1 to 2 weeks
Product Videos
Custom Field
Caster Type Wheel
Wheel Diameter 14"
Tread Width 3-5/16"
Hub Length 3-1/4"
Bore ID 1"
Wheel Material Cast Iron
Load Capacity 3,000
Wheel Bearing Roller Bearing
