Product Description

S-ZFMDD-65SWF70D

Load Capacity (lbs.): 8100

Availability:  Ships in 4-5 weeks

Hamilton Spinfinity® Maxi-Duty Dual Swivel Caster with 6" x 5" UltraGlide® (70D) Five-Wheel Black Tread on Aluminum Core with 1 1/4" Sealed Precision Ball Bearings

• Capacity: 8100 pounds @ 3 mph
• Wheel diameter: 6"
• Wheel face: 5"
• Mounting height: 9"
• Swivel offset: 2.5"

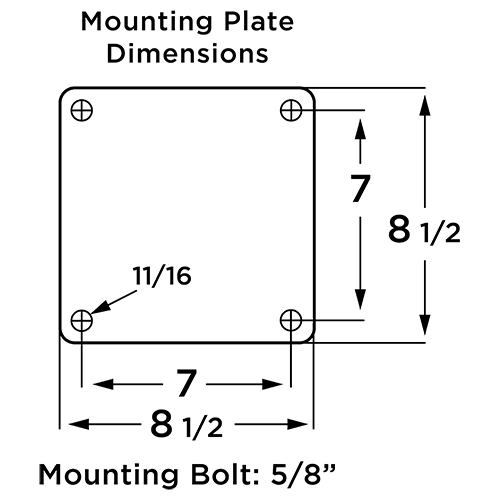

• Top Plate: 8-1/2" x 8-1/4"
• Bolt Hole Pattern: 7" x 7" for 5/8" mounting bolts
• 70 Shore D polyurethane on aluminum core with precision ball bearings

These Maxi-duty dual wheel casters are built on the proven and reliable Spinfinity® Maxi-Duty caster platforms. The sealed swivel raceway combined with the sealed precision ball bearings qualifies this series, like all Spinfinity® Series, to be 100% maintenance-free.

The top plate and inner raceway are forged steel formed from one piece, providing a superior raceway for shock conditions. Engineers also added a heavy duty "V-Style" seal for the swivel raceway, thicker legs, larger axles, and massive double stacked precision ball bearings to accommodate the higher speeds.
