Product Description
- 12" x 4" Nylast® wheel with precision ball bearings
- Machined cast nylon has an 85 Shore D hardness
- 10,000-pound capacity
- 15-1/2" mounting height

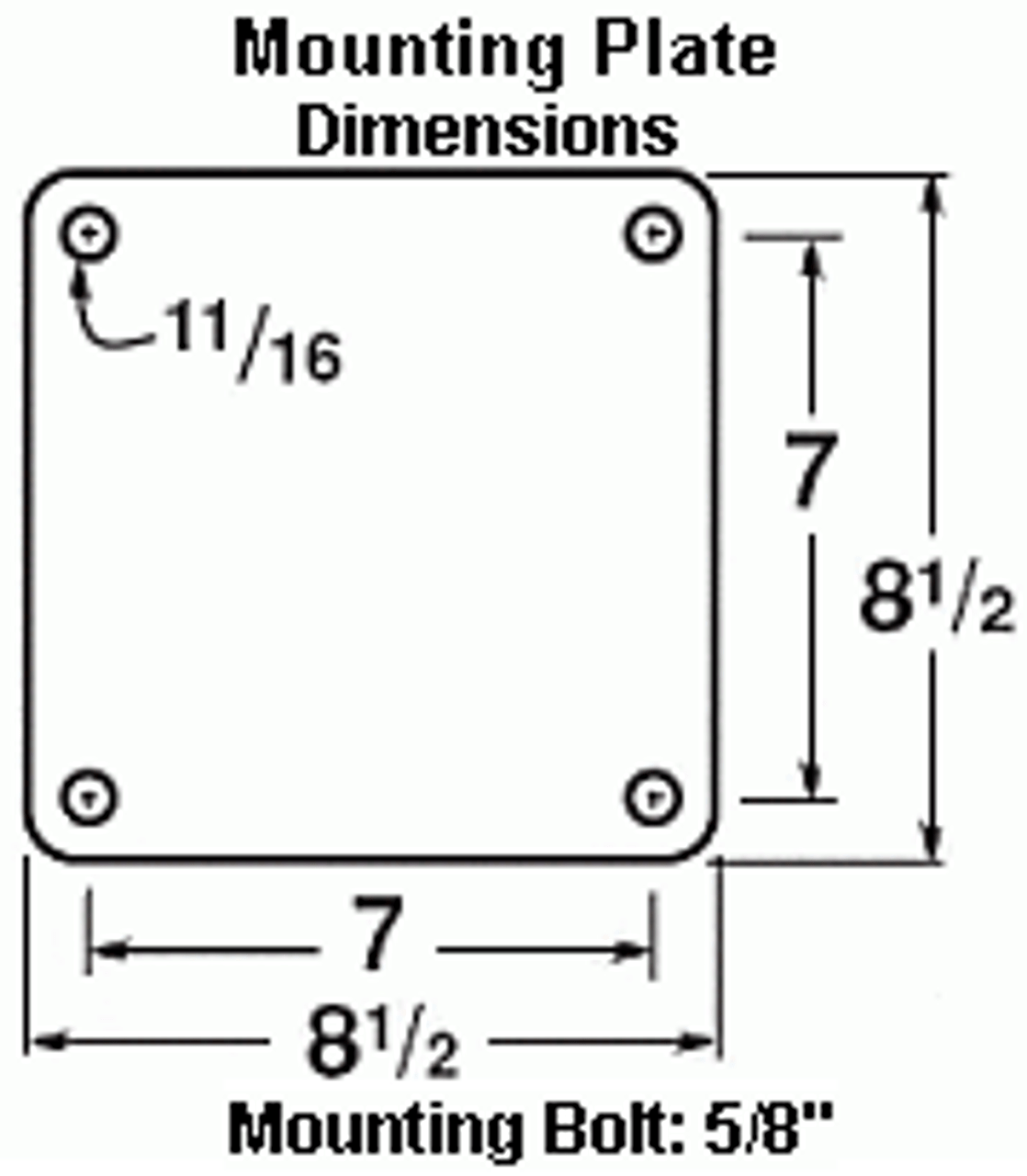

- 8-1/2" x 8-1/2" top plate
- 7" x 7" bolt hole pattern for 5/8" mounting bolts
- 1-1/4" diameter grade 5 hex head axle
- Optional swivel lock and brake are available
- Made in the USA
- 100-pound shipping weight
Featuring Hamilton's HPI Swivel Technology
The HPI Technology outperforms conventional CNC-machined ball raceways, kingpinless and unit load-bearing swivel constructions.
The new design improves the bearings' element of contact and more than doubles the number of contact points.
The raceways are also 45% harder than conventional hardened raceways and the surface finish is an incredibly smooth 16 micro inches.
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 12"
Tread Width 4"
Brake No
Mounting Type Top Plate
Mounting Size 8-1/2" x 8-1/2"
Bolt Hole Pattern 7" x 7"
Wheel Material Nylon
Overall Height 15-1/2"
Load Capacity 10,000 lbs
Finish Zinc
Wheel Bearing Precision Ball Bearing
