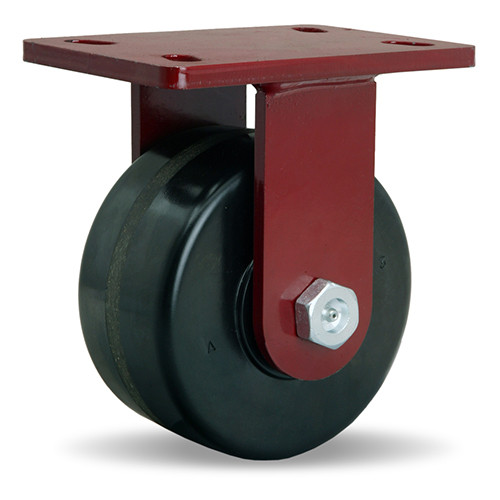

Product Description
Hamilton's ForgeMaster Casters were designed to match popular industry mounting plate, bolt hole and overall height specifications. However the precision tapered thrust bearing guaranteed-for-life integrally forged kingpin design makes it superior to the double ball raceways in its class.QUALITY FEATURES:
- Swivel Construction - 3/8" thick drop foged steel mounting plate, 5/16" x 2-1/2" plate steel legs
- Kingpin - 1" diameter intrgrally forged with mounting plate guaranteed for life.
- Main Load Bearing - CNC-machined 3-1/4" diameter raceway, 1/2" diameter hardened and polished steel bearings
- Secondary Load Bearing - 1" precision tapered thrust bearing counteract radial thrust
- Axle - 3/4" diameter hex head with lock nut
- Lubrication Fittings - Ball-check type in swivel assembly and wheel hub
- Finish - Hamilton red enamel
- Capacity - 2,200 pounds
- Mounting Height - 10-1/4"
- Wheel Type - Plastex phenolic wheel with straight roller bearing on forged steel rig
- Top Plate - 4-1/2" x 6-1/2"
- Bolt Holes - 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/2"
- Swivel Offset - 2-1/4"
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 8"
Tread Width 3"
Brake No
Mounting Type Top Plate
Mounting Size 4-1/2" x 6-1/2"
Bolt Hole Pattern 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4"
Wheel Material Phenolic
Overall Height 10-1/4"
Load Capacity 2,200 lbs
Finish Crimson Powder
Wheel Bearing Roller Bearing
