Product Description
S-FM-13SWF95

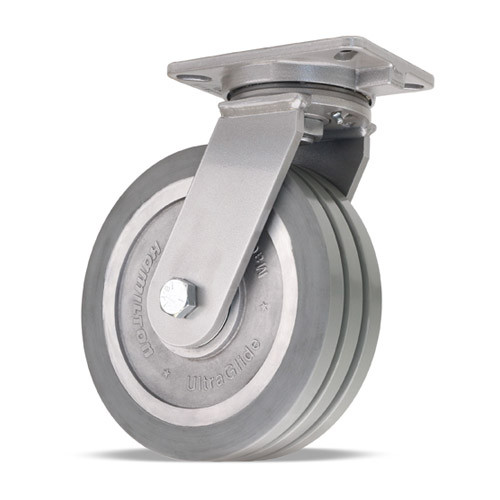

Hamilton ForgeMaster™ Swivel Caster with 10" x 3" UltraGlide™ (95A) Triple Wheel Grey Tread on Aluminum Core with 3/4" Sealed Precision Ball Bearings
Caster Specs
Load Capacity (lbs.): 2200
Wheel Diameter: 8
Wheel Face: 3
Overall Height: 11.5
Bearing Type: Precision Sealed Ball
Caster Rig Type: Integral Forged Kingpin
Wheel Type: UltraGlide™ 247
Caster Color: Crimson Powder
Wheel Specs
Type: UltraGlide™ 247
Material: Polyurethane
Cushioning(Resilience): Medium
Impact Resistance: High
Moisture Resistance: High
Abrasion Resistance: High
Low Temp. Range (F): 50
High Temp. Range (F): 200
Chemical Resistance: Medium
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 10"
Tread Width 3"
Brake No
Mounting Type Top Plate
Mounting Size 5" x 7"
Bolt Hole Pattern 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4"
Wheel Material Polyurethane
Overall Height 11-1/2"
Load Capacity 2,200 lbs
Finish Zinc
Wheel Bearing Sealed Precision Ball Bearing
