Product Description

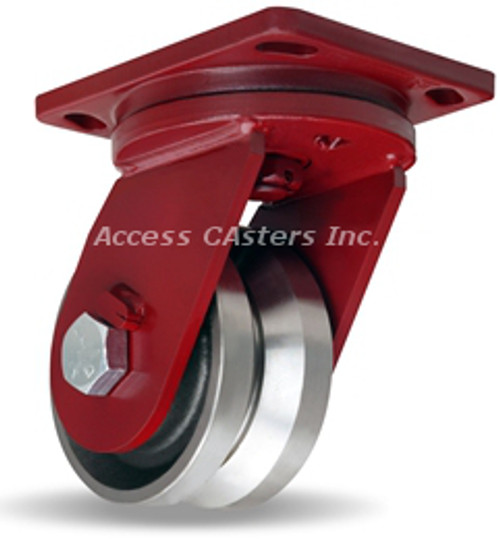

Hamilton Enhanced Precision Super Duty Swivel Caster
6" x 3" Forged Steel V-Grooved Wheel
1 1/4" Precision Tapered Roller Bearing
Specifications
**Ships in 1-2 days
6" x 3" Forged Steel V-Grooved Wheel
1 1/4" Precision Tapered Roller Bearing
Specifications
- Bearing Type:Tapered
- Bolt Holes:3 3/8 x 5 1/4 by
4 1/8 x 6 1/8 - Bolt Hole 1:3 7/8 x 5 3/4
- Bolt Hole 2:5 1/8 x 6 1/4
- Mounting Bolt:.5
- Caster Rig Type:Forged Steel
- Swivel or Rigid caster:Swivel
- Caster Color/Finish:Crimson Red
- Wheel Color/Finish:Clearcoat
- Wheel Diameter:6
- Face "K":3
- Groove Width:1.375
- Load Capacity (lbs.):10000
- Overall Height:8.5
- Replacement Wheel: W-630-FVT-1-1/4
- Swivel Offset 'G':
2.5 - Mounting Plate:6 1/2 x 7 1/2
- Mounting Plate Length:7.5
- Mounting Plate Width:6.5
- Weight (lbs.):35 lbs
- Wheel Face:3
- Wheel Type:V-Grooved
**Ships in 1-2 days
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 6"
Tread Width 3"
Brake No
Mounting Type Top Plate
Mounting Size 6-1/2" x 7-1/2"
Bolt Hole Pattern 3-3/8" x 5-1/4" to 4-1/8" x 6-1/8"
Wheel Material Forged Steel
Overall Height 8-1/2"
Load Capacity 10,000 lbs
Finish Zinc
Wheel Bearing Precision Tapered Roller Bearing
