Product Description
8" x 2" solid stainless steel wheel with stainless precision ball bearings
1,600 pound load rating
9-1/2" mounting height
Heavy duty type 304 stainless steel construction
4" x 5" top plate
3" x 3" slotted to 2-5/8" x 3-5/8" bolt hole pattern
This caster is designed for extra heavy duty loads in sever applications where corrosive environments or sanitary considerations
demand having all fork and hardware components of stainless steel. The forged stainless steel swivel construction includes a
3/4" diameter integrally forged kingpin that is guaranteed for life. Each caster undergoes a special process after fabrication to
insure the removal of embedded contaminants, edge burrs, and surface stresses. The resulting high-lustre finish not only
enhances appearance but provides a smoother, less porous surface that's impervious to dirt and easier to clean - making
these casters ideal for chemical factories, food production facilities, pharmaceutical houses, and other wash-down environments.
Product Videos
Custom Field

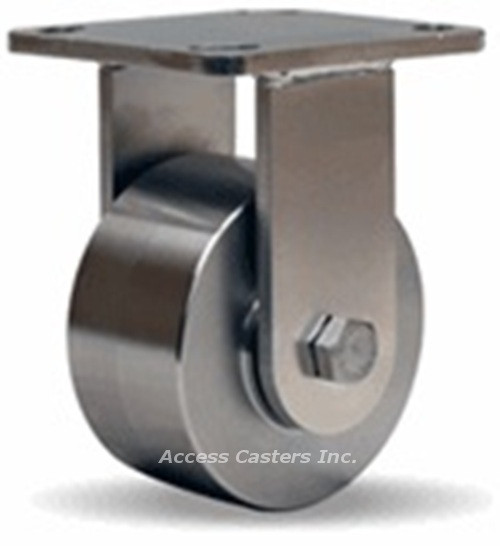

Caster Type Rigid
Wheel Diameter 8"
Tread Width 2"
Brake No
Mounting Type Top Plate
Mounting Size 4" x 4-1/2"
Bolt Hole Pattern 3" x 3" to 2-5/8" x 3-5/8"
Wheel Material Stainless Steel
Overall Height 9-1/2"
Load Capacity 1,600 lbs
Finish Zinc
Wheel Bearing Precision Ball Bearing
