Product Description

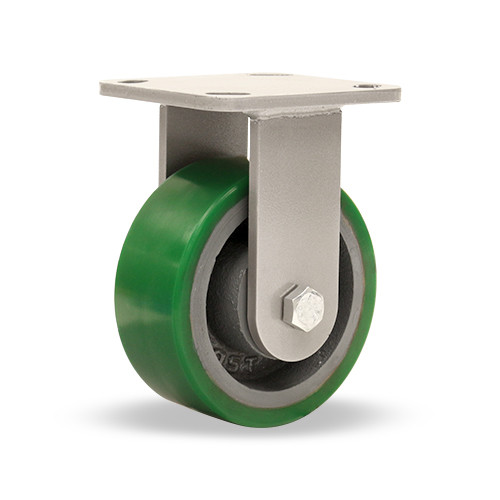

Hamilton Series WH Workhorse Rigid Caster. 1/4" X 2" plate steel legs robotically welded inside and outside to top plate. Ball check lubrication fittings in swivel assembly and in wheel hubs with tapered or straight roller bearings.- Wheel - 5" x 2" Polysoft 80 Shore A polyurethane on cast iron wheel with precision ball bearings
- Capacity - 840 pounds
- Height - 6-1/2"
- Top Plate - 4" x 4-1/2"
- Bolt Holes - 3" x 3" slotted to 2-5/8" x 3-5/8"
- Mounting Bolt Diameter - 3/8"
Product Videos
Custom Field
Caster Type Rigid
Wheel Diameter 5"
Tread Width 2"
Brake No
Mounting Type Top Plate
Mounting Size 4" x 4-1/2"
Bolt Hole Pattern 3" x 3" to 2-5/8" x 3-5/8"
Wheel Material Polyurethane
Overall Height 6-1/2"
Load Capacity 840 lbs
Finish Zinc
Wheel Bearing Precision Ball Bearing
