Product Description
Hamilton Workhorse Rigid Caster
4" x 2" V-Grooved Wheel
3/4" Straight Roller Bearing
Specifications
**Ships in 1-2 days
4" x 2" V-Grooved Wheel
3/4" Straight Roller Bearing
Specifications
- Bearing Type:Roller
- Bolt Holes:2 5/8 x 3 5/8 by
3 x 3 - Bolt Hole 1:3 x 3
- Bolt Hole 2:2 5/8 x 3 5/8
- Mounting Bolt:0.375
- Caster Rig Type:Forged Steel
- Swivel or Rigid caster:Rigid
- Caster Color/Finish:Battleship Gray
- Wheel Color/Finish:Black
- Wheel Diameter:4
- Face "K":2
- Groove Width:0.875
- Load Capacity (lbs.):800
- Overall Height:5.625
- Replacement Wheel: W-420-V-3/4

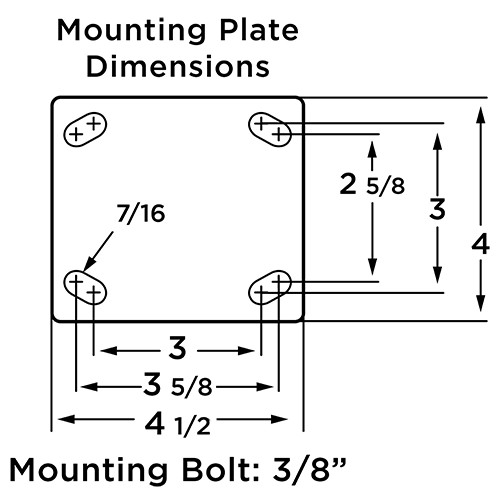

- Mounting Plate:4 x 4 1/2
- Mounting Plate Length:4.5
- Mounting Plate Width:4
- Weight (lbs.):7 lbs
- Wheel Face:2
- Wheel Type:V-Grooved
**Ships in 1-2 days
Product Videos
Custom Field
Caster Type Rigid
Wheel Diameter 4"
Tread Width 2"
Brake No
Mounting Type Top Plate
Mounting Size 4" x 4-1/2"
Bolt Hole Pattern 3" x 3" to 2-5/8" x 3-5/8"
Wheel Material Cast Iron
Overall Height 5-5/8"
Load Capacity 800 lbs
Finish Battleship Gray
Wheel Bearing Roller Bearing
