Product Description

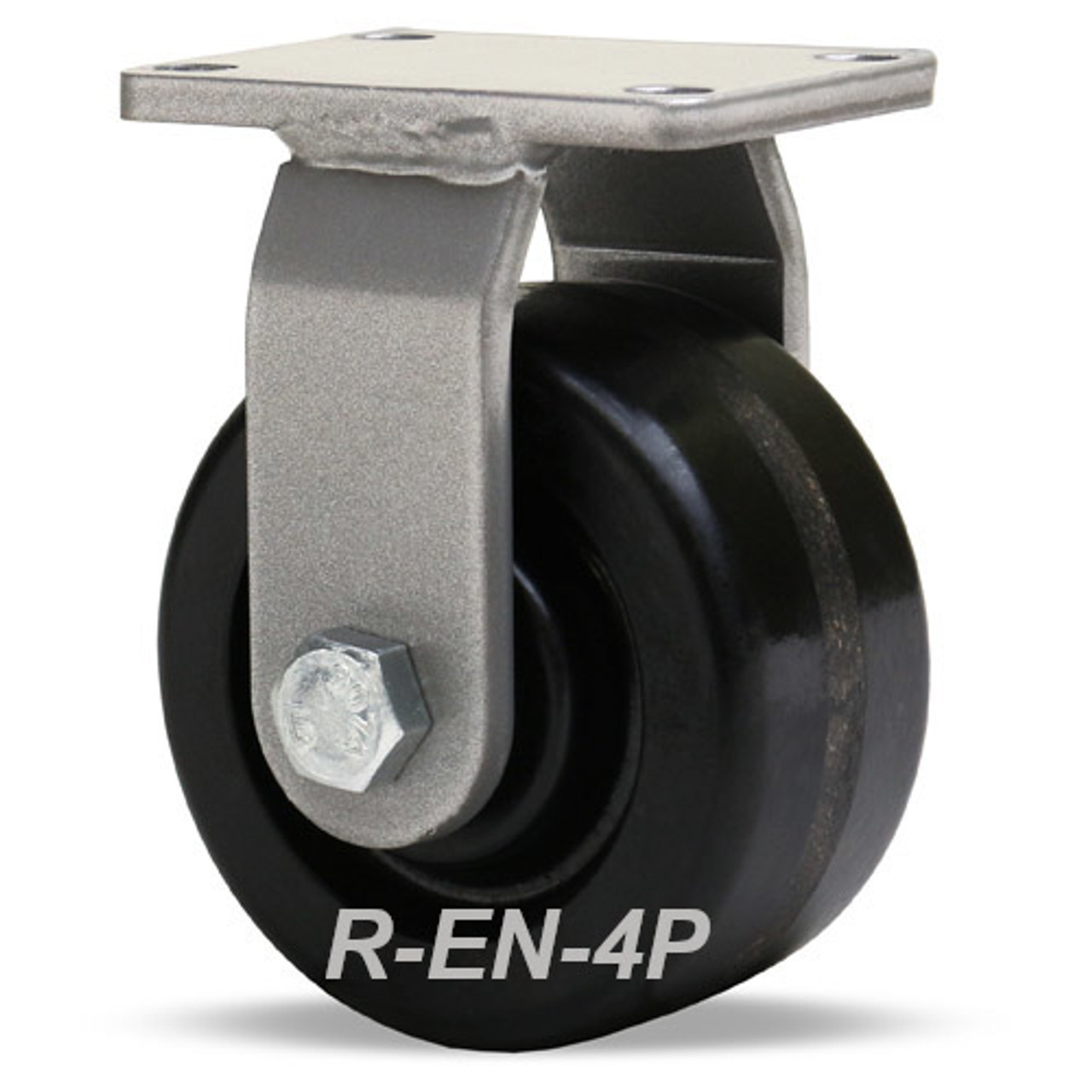

Small top plate caster with extreme capacity. Rugged rigid caster with 4" x 2" phenolic wheel offers a 800 pound capacity with low height and the ability to function in 24/7 operations.- 4" x 2" phenolic wheel
- 800 pound capacity
- Roller bearings in wheel
- 1/4" thick top plate
- 1/4" thick legs
- Mounting height: 5.13"
- Swivel offset: 1.188"
- Powder Coated with a metallic HAA polyester
- Temperature range: -50°F to 200°F
- Chemical Resistance: Medium
The endurance series only dimensional difference lies in its wheel width and leg thickness. To achieve a higher load rating and durablility, Endurance features two-inch wide wheels and 1/4" thick legs (other brands have 1-1.4" wide wheels). You'll pay more up front for its premium construction and ultra-rugged design, then reap the savings in the long run while it runs and runs without breaking a sweat. Endurance is intentionally designed and over-engineered for applications where replacement is cost prohibitive.
Product Videos
Custom Field
Caster Type Rigid
Wheel Diameter 4"
Tread Width 2"
Brake No
Mounting Type Top Plate
Mounting Size 2-1/2" x 3-5/8"
Bolt Hole Pattern 1-3/4" x 2-7/16" to 1-3/4" x 3"
Wheel Material Phenolic
Overall Height 5-1/8"
Load Capacity 800 lbs
Finish Zinc
Wheel Bearing Roller Bearing
