Product Description
12" Hamilton Heavy Duty Ground Support Rigid Caster
12" x 4" Heavy duty solid pneumatic tire with tapered bearings
1,200 pound load rating
Designed for ground support tow applications.
15-1/2" Mounting Height

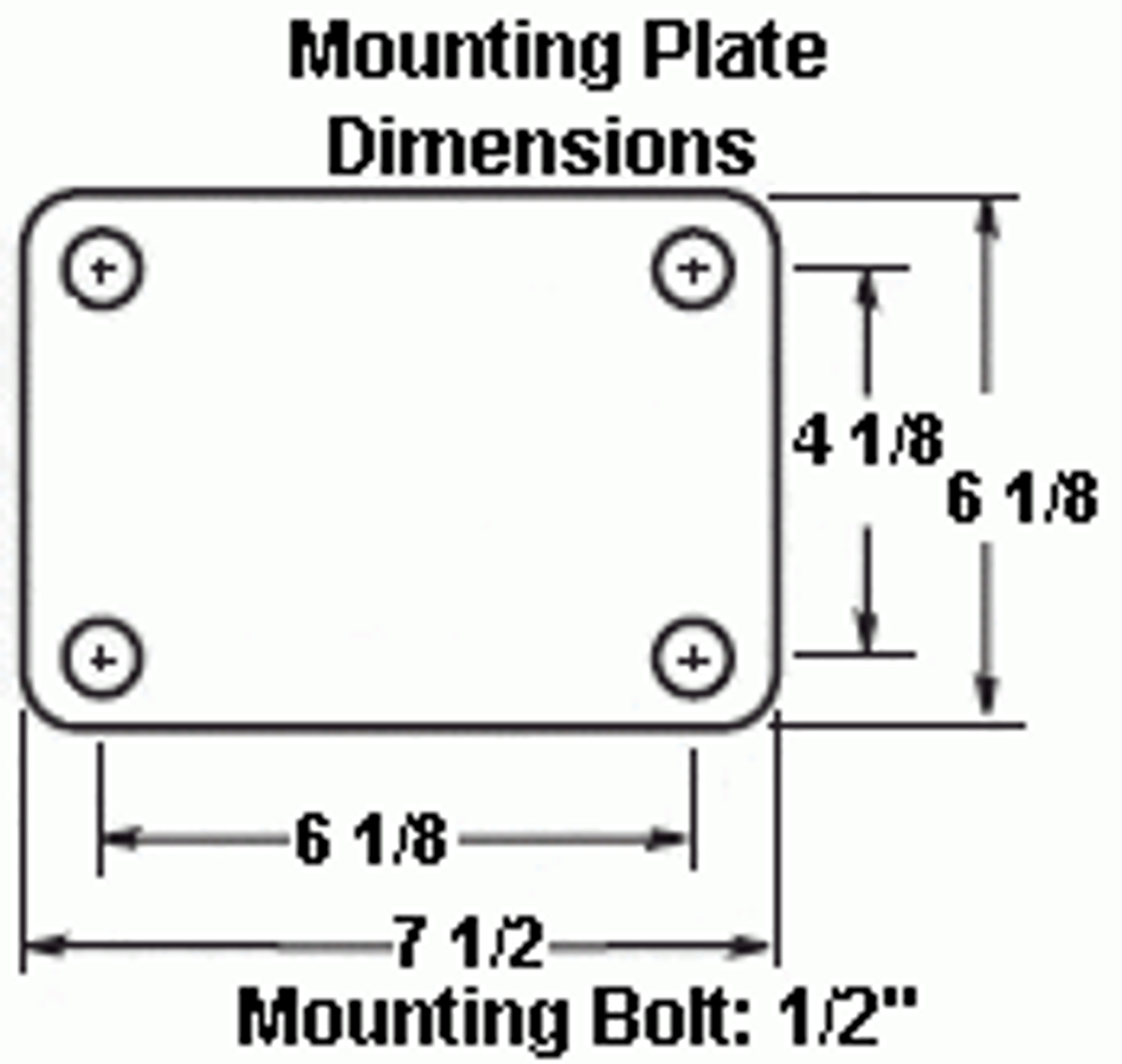

6-1/8" x 7-1/2" top plate
4-1/8" x 6-1/8" Bolt Hole Pattern
Drop forged construction
Drop forged construction
Tapered bearings in wheels
Red enamel finish
This caster requires 2-3 weeks to ship.
Unit shipping weight is 39 pounds.
Unit shipping weight is 39 pounds.
Product Videos
Custom Field
Caster Type Rigid
Wheel Diameter 12"
Tread Width 4"
Brake No
Mounting Type Top Plate
Mounting Size 6-1/8" x 7-1/2"
Bolt Hole Pattern 4-1/8" x 6-1/8"
Wheel Material Pneumatic
Overall Height 15-1/2"
Load Capacity 1,200 lbs
Finish Zinc
Wheel Bearing Tapered Roller Bearing
