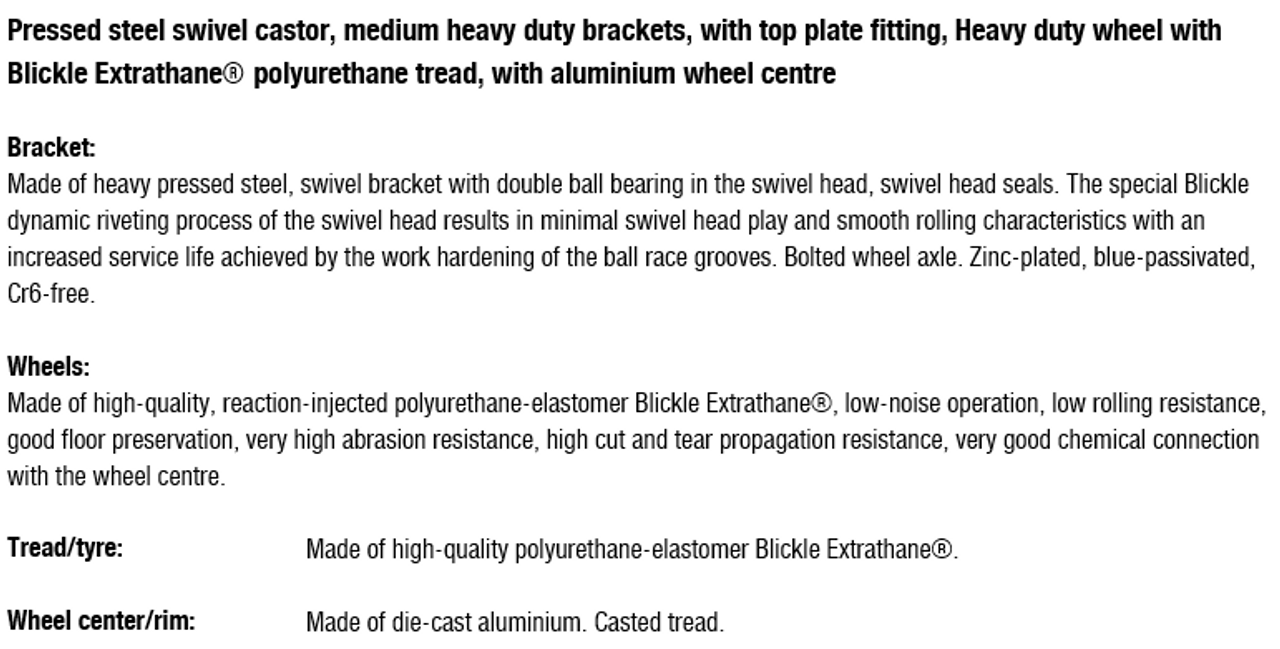

Product Description
5 x 1-9/16" POEV wheel
Tread: High-quality polyurethane-elastomer Blickle Extrathane ®
92 ° Shore A
Light brown, non-marking, non-staining.
Wheel Center: Die-cast aluminum.
Ball Bearing
Swivel Plate Caster
Overall plate size 4 x 4 1/2
Bolt hole pattern 2 5/8 - 3 5/8 slotted to 3 x 3
Mounting hole size 7/16
Offset 1 7/8
Total height: 6 1/8"
770 lbs load capacity
√RoHS Compliant
Tread: High-quality polyurethane-elastomer Blickle Extrathane ®
92 ° Shore A
Light brown, non-marking, non-staining.
Wheel Center: Die-cast aluminum.
Ball Bearing
Swivel Plate Caster
Overall plate size 4 x 4 1/2
Bolt hole pattern 2 5/8 - 3 5/8 slotted to 3 x 3
Mounting hole size 7/16
Offset 1 7/8
Total height: 6 1/8"
770 lbs load capacity
√RoHS Compliant
Product Videos

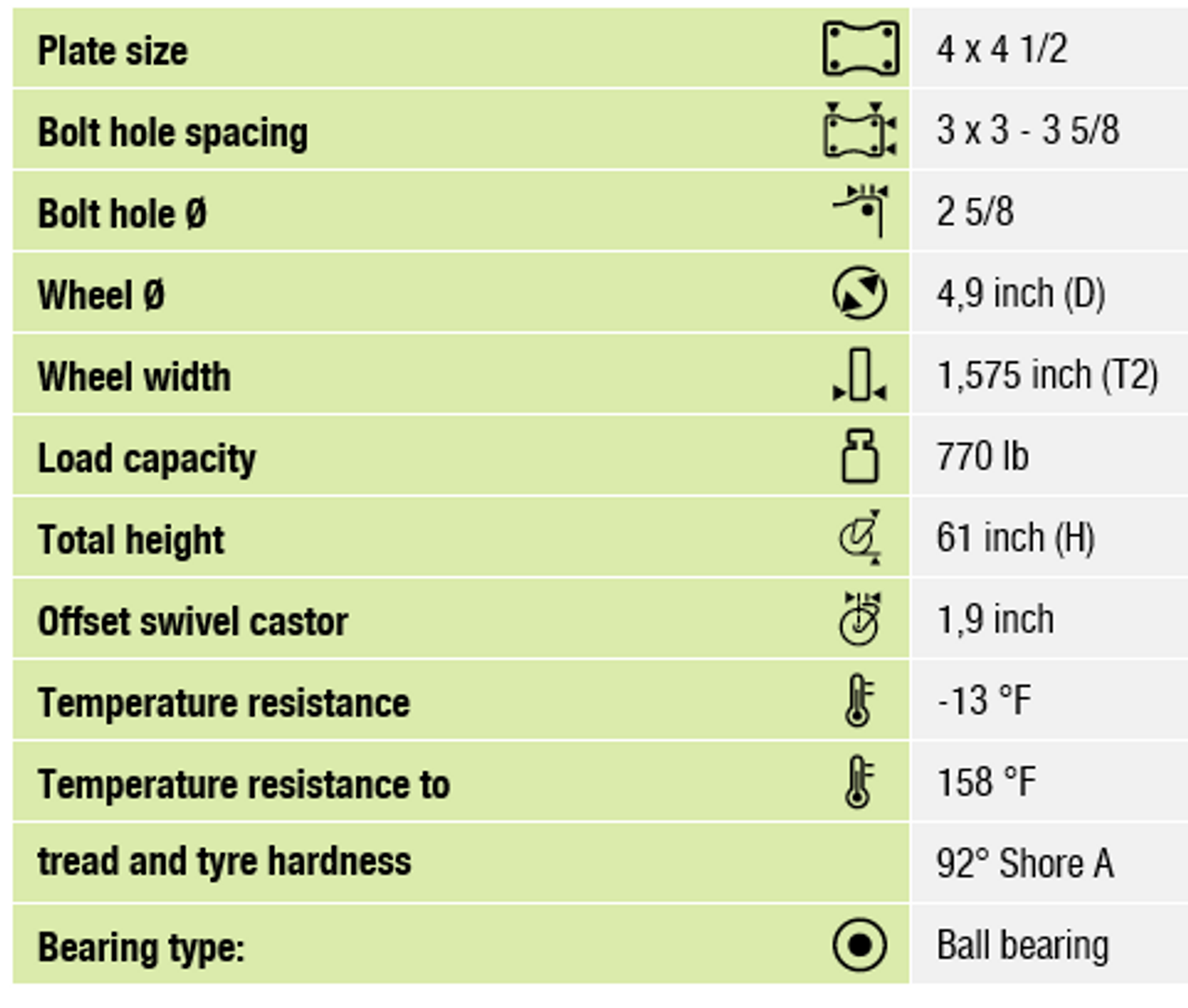

Custom Field
Caster Type Swivel
Wheel Diameter 5"
Tread Width 1-3/8"
Brake No
Mounting Type Top Plate
Mounting Size 4" x 4-1/2"
Bolt Hole Pattern 2-5/8" - 3-5/8" to 3 x 3"
Wheel Material Polyurethane
Overall Height 6-1/8"
Load Capacity 550 lbs
Finish Zinc
Wheel Bearing Ball Bearing
