Product Description

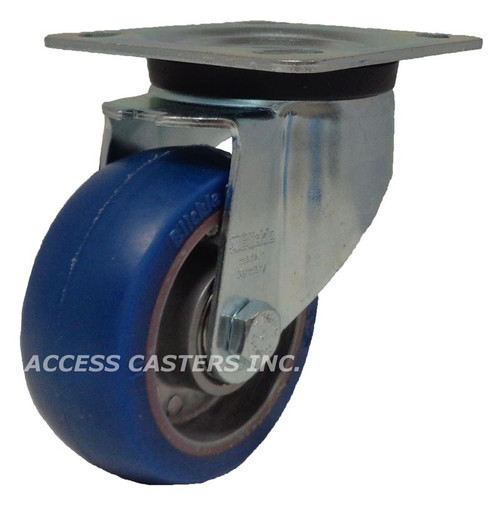

5 x 1 9/16" ALBS wheel
Tread: High-quality polyurethane-elastomer Blickle Besthane®
Soft, 75 ° Shore A
Blue, non-marking, non-stainging.
Wheel Center: Die-cast aluminum.
Ball Bearing
Swivel Plate Caster with total lock brake
Overall plate size 4 x 4 1/2
Bolt hole pattern 2 5/8 - 3 5/8 slotted to 3 x 3
Mounting hole size 7/16
Offset 1 7/8
Total height: 6 1/8"
770 lbs load capacity
√RoHS Compliant
Tread: High-quality polyurethane-elastomer Blickle Besthane®
Soft, 75 ° Shore A
Blue, non-marking, non-stainging.
Wheel Center: Die-cast aluminum.
Ball Bearing
Swivel Plate Caster with total lock brake
Overall plate size 4 x 4 1/2
Bolt hole pattern 2 5/8 - 3 5/8 slotted to 3 x 3
Mounting hole size 7/16
Offset 1 7/8
Total height: 6 1/8"
770 lbs load capacity
√RoHS Compliant
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 5"
Tread Width 1-9/16"
Brake Yes
Mounting Type Top Plate
Mounting Size 4" x 4-1/2"
Bolt Hole Pattern 2-5/8" x 3-5/8" to 3" x 3"
Wheel Material Polyurethane
Overall Height 6-1/8"
Load Capacity 770 lbs
Finish Zinc
Wheel Bearing Ball Bearing
