Product Description

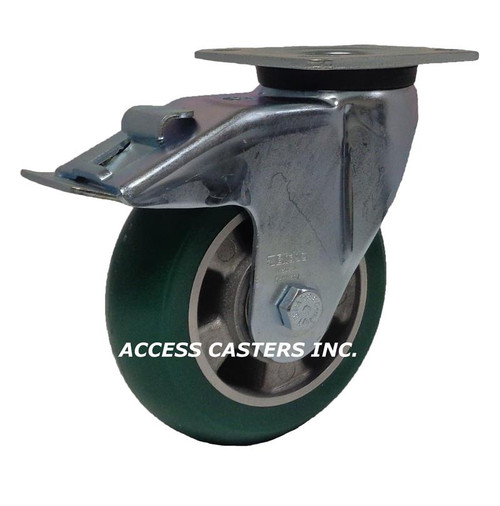

6 5/16 x 2" ALST wheel
Tread: High-quality polyurethane-elastomer
75° Shore A
Green, non-marking, non-staining.
Wheel Center: Die-cast aluminum.
Ball Bearing
Swivel Plate Caster
Total Lock Brake
Overall plate size 4 x 4 1/2
Bolt hole pattern 2 5/8 - 3 5/8 slotted to 3 x 3
Mounting hole size 7/16
Offset 2 1/4
Total height: 7 7/8"
1210 lbs load capacity
√RoHS Compliant
Tread: High-quality polyurethane-elastomer
75° Shore A
Green, non-marking, non-staining.
Wheel Center: Die-cast aluminum.
Ball Bearing
Swivel Plate Caster
Total Lock Brake
Overall plate size 4 x 4 1/2
Bolt hole pattern 2 5/8 - 3 5/8 slotted to 3 x 3
Mounting hole size 7/16
Offset 2 1/4
Total height: 7 7/8"
1210 lbs load capacity
√RoHS Compliant
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 6"
Tread Width 1-3/4"
Brake Yes
Mounting Type Top Plate
Mounting Size 4" x 4-1/2"
Bolt Hole Pattern 2-5/8" - 3-5/8" to 3 x 3"
Wheel Material Polyurethane
Overall Height 7-7/8"
Load Capacity 1,100 lbs
Finish Zinc
Wheel Bearing Ball Bearing
