Product Description
3-1/8 x 1-1/8" ALTH wheel
Wheel: Polyurethane-Elastomer, Non-Marking, Cast thread
92° Shore D, Light Brown.
Wheel Center: Die-Cast Aluminum
Ball Bearing

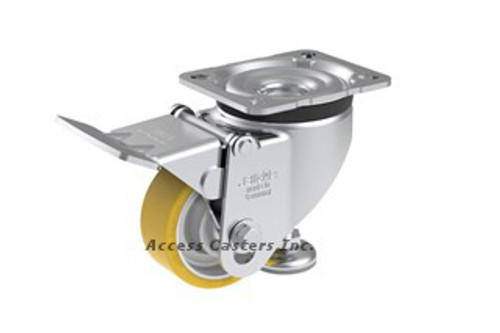

Swivel Plate Leveling Caster
Max total height 4 51/64
Lifting height 5/64
Overall plate size 100 x 85
Bolt hole pattern 80 x 60
Mounting bolt 5/16
Offset 2 13/64
Total height: 4-11/16"
400 lbs load capacity
√RoHS Compliant
Wheel: Polyurethane-Elastomer, Non-Marking, Cast thread
92° Shore D, Light Brown.
Wheel Center: Die-Cast Aluminum
Ball Bearing
Swivel Plate Leveling Caster
Max total height 4 51/64
Lifting height 5/64
Overall plate size 100 x 85
Bolt hole pattern 80 x 60
Mounting bolt 5/16
Offset 2 13/64
Total height: 4-11/16"
400 lbs load capacity
√RoHS Compliant
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 3-1/8"
Tread Width 1-1/8"
Brake Yes
Mounting Type Top Plate
Mounting Size 85mm x 100mm
Bolt Hole Pattern 60mm x 80mm
Wheel Material Polyurethane
Overall Height 4-11/16"
Load Capacity 400 lbs
Finish Zinc
Wheel Bearing Ball Bearing
