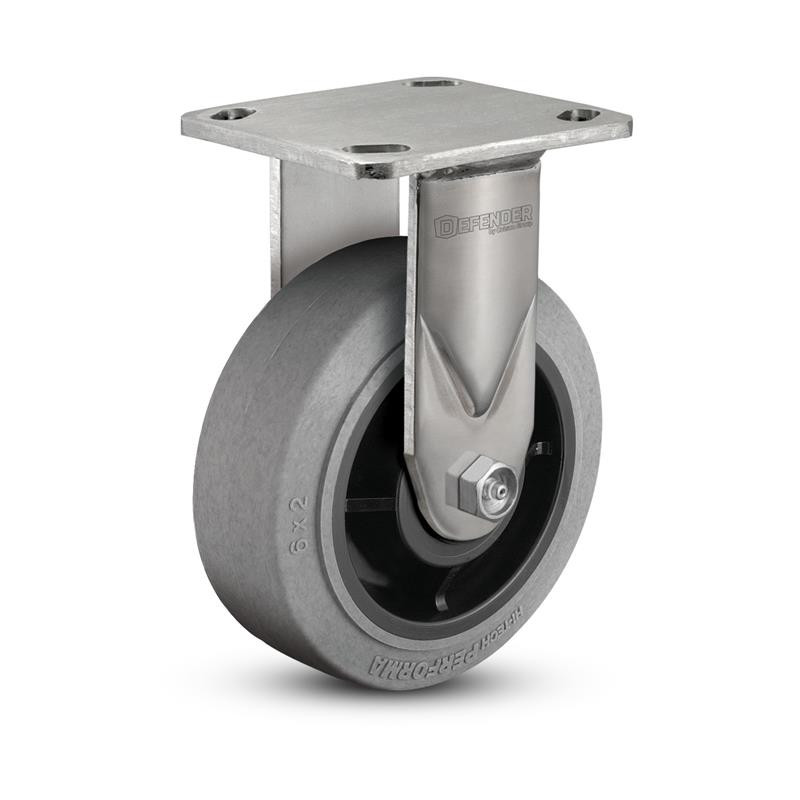

Product Description
- 410 pound capacity
- 7-1/2" mounting height
- 4" x 4-1/2" top plate
- 3" x 3" slotted to 2-5/8" x 3-5/8" bolt hole pattern
- Highly polished 304 stainless steel construction
- Stainless steel roller bearings in wheel
Many computer manufacturers and electronics companies require conductive wheels on assembly carts to eliminate static build-up and discharge. Although conductive caster wheels have existed for years, almost all of them mark floors. Colson has solved this problem with our selection of Performa Conductive Wheels. These models combine a soft cushion ride with a non-marking tread design. All wheels feature a cushion grey Performa tread bonded to a black Polyolefin wheel core. Performa Conductive wheels have been rigorously tested and approved by an independent lab and meet the requirements of federal specification FF-C-88C. This specification requires an average electrical resistance of less than 250,000 ohms. For other wheel sizes, please consult factory for availability. Temperature Range: -45ºF to +180ºF intermittent service (120º continuous service) Hardness: 75(±5) Durometer Shore A scale IMPORTANT NOTICE As oil is injurious to compounds and impairs the electrical conductivity of these products, contact with oil should be avoided. Conductive characteristics of the tread compounds may decrease with, among other things, service and contact with lubricants, waxes, polishes and cleaning materials used for floor maintenance. Since Colson has no control over these conditions, no warranties, express or implied, of either merchantability, fitness or otherwise respect to the continuing level of conductivity of the product, are made.
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Rigid
Wheel Diameter 6"
Tread Width 2"
Brake No
Mounting Type Top Plate
Mounting Size 4" x 4-1/2"
Bolt Hole Pattern 3" x 3" to 2-5/8" x 3-5/8"
Wheel Material Rubber
Overall Height 7-1/2"
Load Capacity 410 lbs
Finish Stainless
Wheel Bearing Roller Bearing
