Product Description

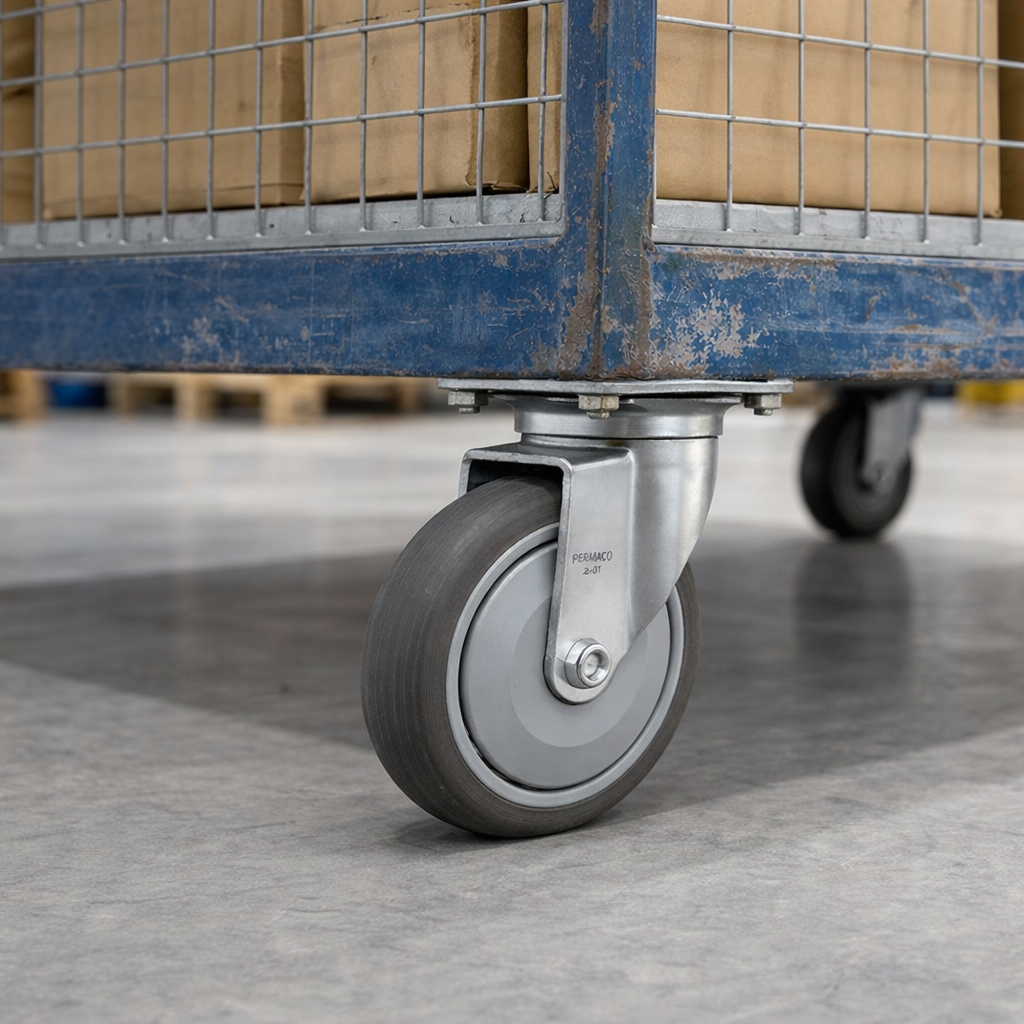

- 5" swivel caster
- 5" x 1-1/4" non marking Thermo-Rubber(TPR) wheel
- Precision ball bearings
- Full thread guards
- 325 pound capacity
- 6-1/4" mounting height
- 2-5/8" x 3-3/4" top plate
- 1-3/4" x 2-3/4" x 3" bolt hole pattern
- RoHS compliant zinc finish
Thermo-Rubber (TPR)
wheels provide excellent
floor protection, are resistant
to most chemical/oils, and
help reduce vibration by
absorbing shock. Standard
precision ball bearings
provide easy and quiet
rolling. Full thread guards
prevent debris from entangling
the axles.
Durometer: 75A (±5)
Temp Range: -40°F to +180°F
APPLICATIONS
• Carts
• Material Handling Equipment
• Store Fixtures
• Institutional Equipment
• Office Equipment
• Food Service
• Storage Equipment/Cabinets
• Hospitality Carts
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 5"
Tread Width 1-1/4"
Brake No
Mounting Type Top Plate
Mounting Size 2-1/2" x 3-5/8"
Bolt Hole Pattern 1-3/4" x 2-3/4" to 3"
Wheel Material Thermoplastic Rubber
Overall Height 6-1/4"
Load Capacity 325 lbs
Finish Zinc
Wheel Bearing Precision Ball Bearing
