Product Description
- 4" swivel caster with side-mounted brake
- Total lock brake engages wheel and swivel section
- 4" x 1-1/4" non marking Thermo-Rubber(TPR) wheel
- Precision ball bearings
- Full thread guards
- 275-pound capacity
- 5-1/4" mounting height
- 2-5/8" x 3-3/4" top plate
- 1-3/4" x 2-3/4" x 3" bolt hole pattern
- RoHS-compliant zinc finish

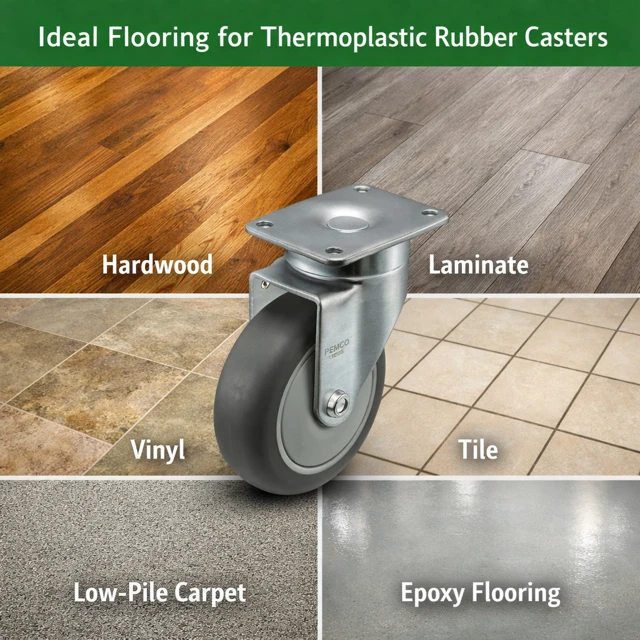

Thermo-Rubber (TPR) wheels provide excellent floor protection, are resistant to most chemicals/oils, and help reduce vibration by absorbing shock. Standard precision ball bearings provide easy and quiet rolling. Full thread guards prevent debris from entangling the axles. Durometer: 75A (±5) Temp Range: -40°F to +180°F
APPLICATIONS
• Carts
• Material Handling Equipment
• Store Fixtures
• Institutional Equipment
• Office Equipment
• Food Service
• Storage Equipment/Cabinets
• Hospitality Carts
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 4"
Tread Width 1-1/4"
Brake Yes
Mounting Type Top Plate
Mounting Size 2-5/8" x 3-3/4"
Bolt Hole Pattern 1-3/4" x 2-3/4" to 1-3/4" x 3"
Wheel Material Soft Rubber
Overall Height 5-1/4"
Load Capacity 275 lbs
Finish Zinc
Wheel Bearing Precision Ball Bearing
