Product Description
- 3" swivel caster with side-mounted brake
- Total lock brake engages wheel and swivel section
- 3" x 1-1/4" nonmarking Thermo-Urethane (TPU) wheel
- Precision ball bearings
- Full thread guards
- 250-pound capacity
- 4-1/4" mounting height
- 2-5/8" x 3-3/4" top plate
- 1-3/4" x 2-3/4" x 3" bolt hole pattern
- RoHS-compliant zinc finish

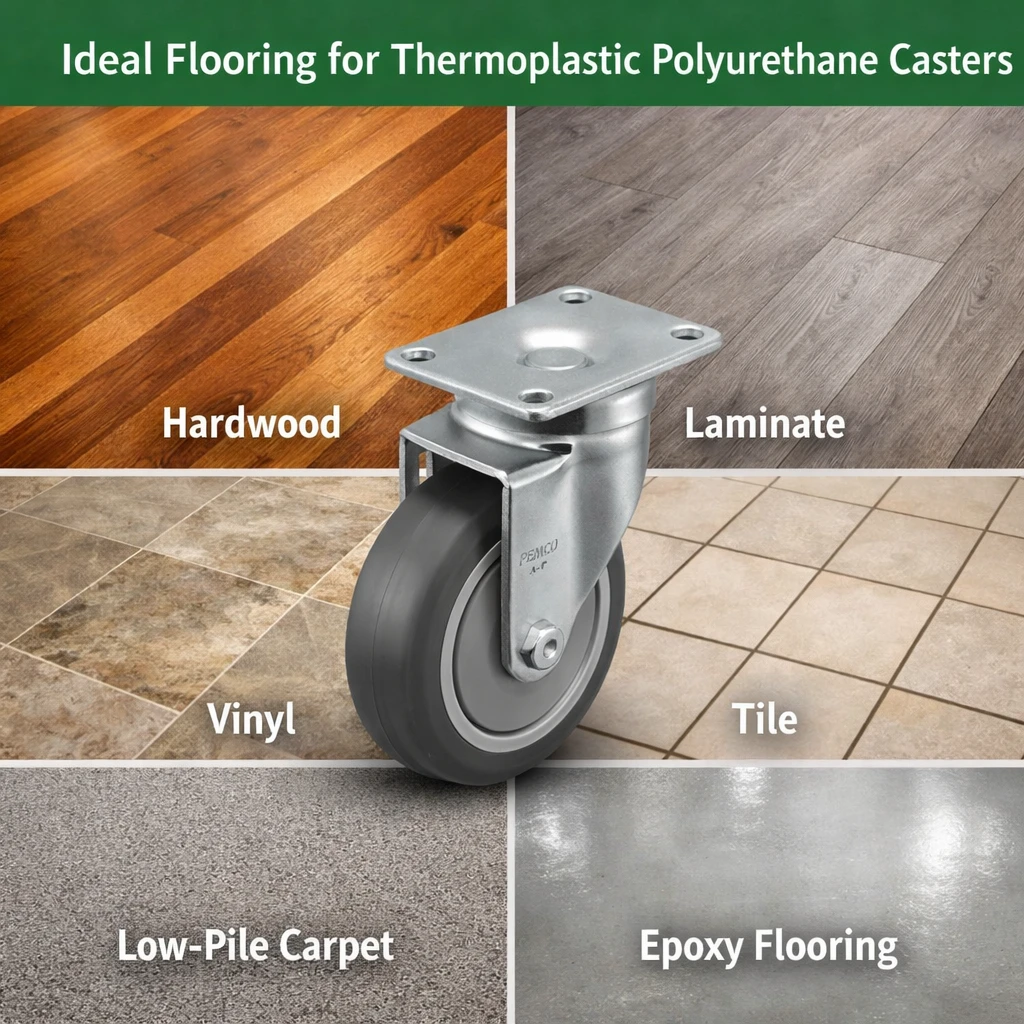

Thermo-Urethane (TPU) wheels are the most ergonomic and easiest to roll, provide excellent floor protection, and are highly resistant to chemicals/oils. Standard precision ball bearings provide easy and quiet rolling. Full thread guards prevent debris from entangling the axles.
Durometer: 90A (±5)
Temp Range: -40°F to +180°F
APPLICATIONS
• Carts
• Material Handling Equipment
• Store Fixtures
• Institutional Equipment
• Office Equipment
• Food Service
• Storage Equipment/Cabinets
• Hospitality Carts
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 3"
Tread Width 1-1/4"
Brake Yes
Mounting Type Top Plate
Mounting Size 2-5/8" x 3-3/4"
Bolt Hole Pattern 1-3/4" x 2-3/4" to 3"
Wheel Material Polyurethane
Overall Height 4-1/4"
Load Capacity 250 lbs
Finish Zinc
Wheel Bearing Precision Ball Bearing
