Product Description
- 5" rigid caster
- 5 x 1-1/4" non marking Thermo-Urethane (TPU)
- Precision ball bearings
- Full thread guards
- 350 pound capacity
- 6-1/4" mounting height
- 2-5/8" x 3-3/4" top plate
- 1-3/4" x 2-3/4" x 3" bolt hole pattern
- RoHS compliant zinc finish
Thermo-Urethane (TPU) wheels are the most ergonomic and easiest to roll, provide
excellent floor protection, and are highly resistant to chemicals/oils. Standard precision
ball bearings provide easy and quiet rolling. Full thread guards prevent debris from
entangling the axles.
Durometer: 90A (±5)
Temp Range: -40°F to +180°F

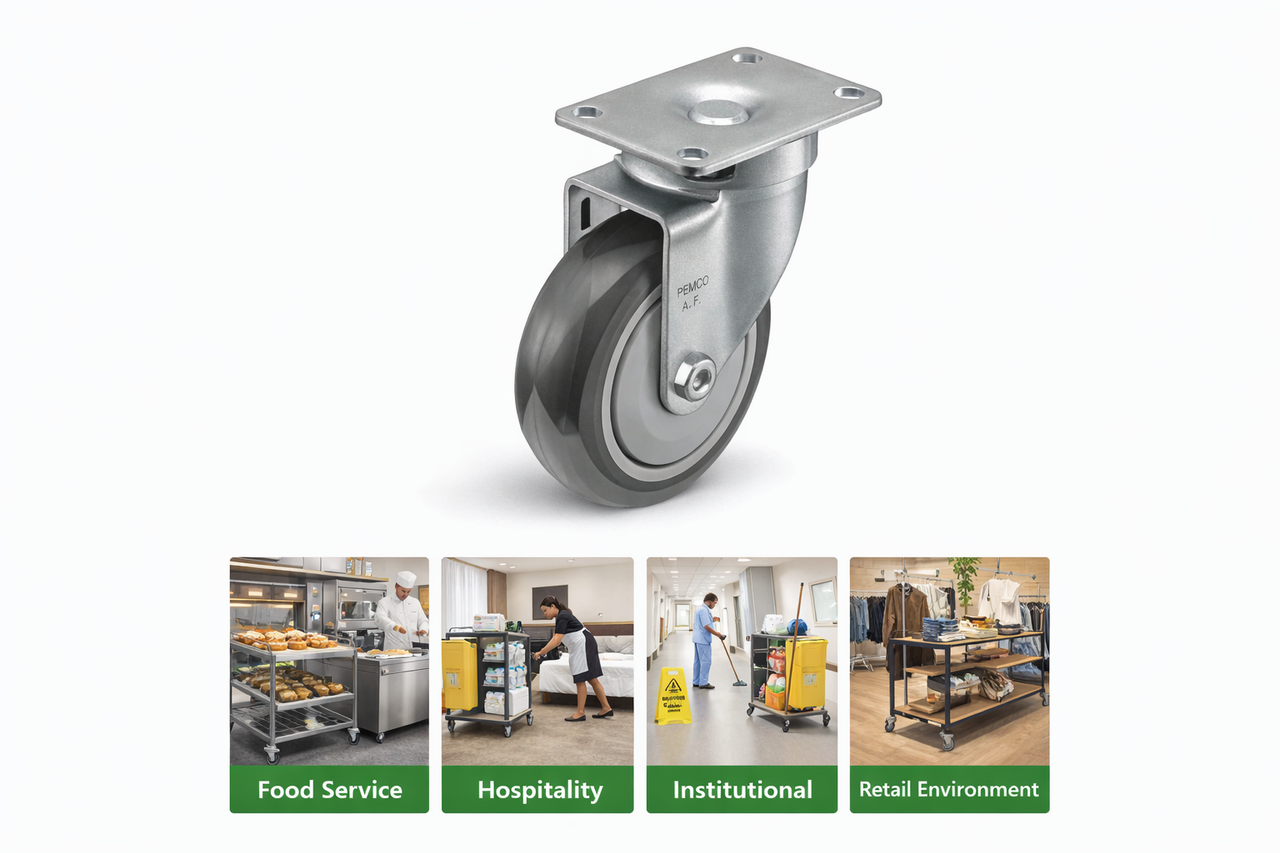

APPLICATIONS
• Carts
• Material Handling Equipment
• Store Fixtures
• Institutional Equipment
• Office Equipment
• Food Service
• Storage Equipment/Cabinets
• Hospitality Carts
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Rigid
Wheel Diameter 5"
Tread Width 1-1/4"
Brake No
Mounting Type Top Plate
Mounting Size 2-5/8" x 3-3/4"
Bolt Hole Pattern 1-3/4" to 2-3/4" x 3"
Wheel Material Polyurethane
Overall Height 6-1/4"
Load Capacity 350 lbs
Finish Zinc
Wheel Bearing Precision Ball Bearing
