Product Description
6 x 2" ALTH wheel

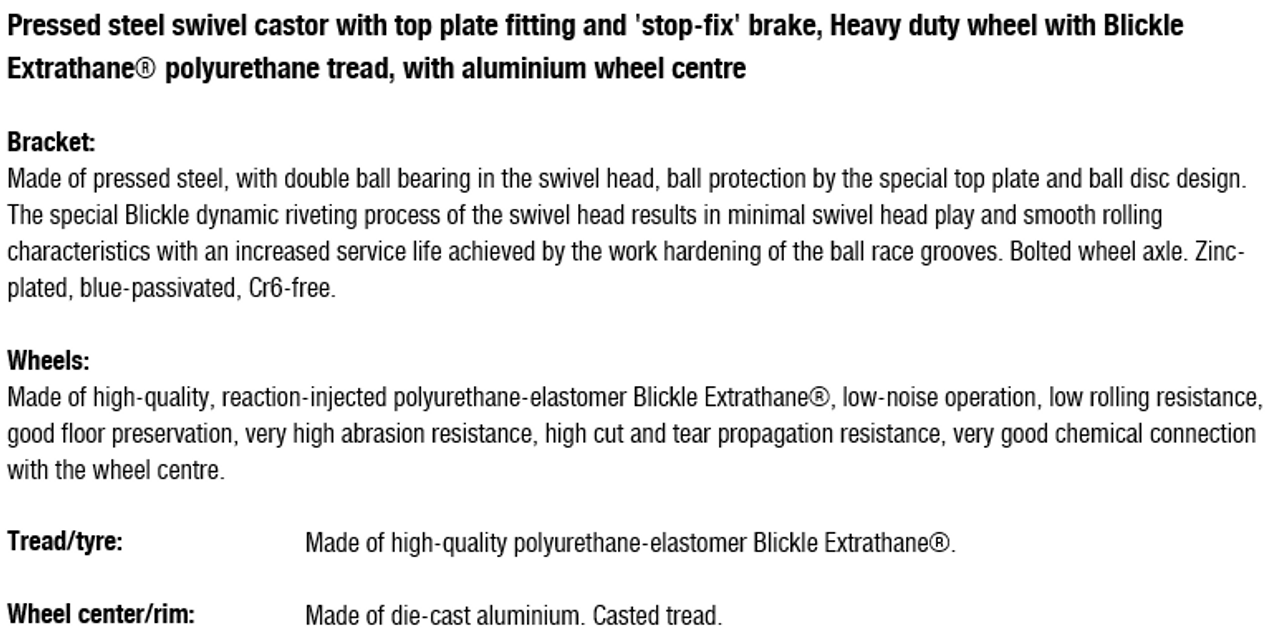

Tread: High-quality polyurethane-elastomer Blickle Extrathane ®
92 ° Shore A
Light brown, non-marking, non-staining.
Wheel Center: Die-cast aluminum.
Ball Bearing
Swivel Plate Caster with total lock brake
Overall plate size 4 x 4 1/2
Bolt hole pattern 2 5/8 - 3 5/8 slotted to 3 x 3
Mounting hole size 7/16
Offset 2 1/8
Total height: 7 1/2"
660 lbs load capacity
√RoHS Compliant
Tread: High-quality polyurethane-elastomer Blickle Extrathane ®
92 ° Shore A
Light brown, non-marking, non-staining.
Wheel Center: Die-cast aluminum.
Ball Bearing
Swivel Plate Caster with total lock brake
Overall plate size 4 x 4 1/2
Bolt hole pattern 2 5/8 - 3 5/8 slotted to 3 x 3
Mounting hole size 7/16
Offset 2 1/8
Total height: 7 1/2"
660 lbs load capacity
√RoHS Compliant
Product Videos

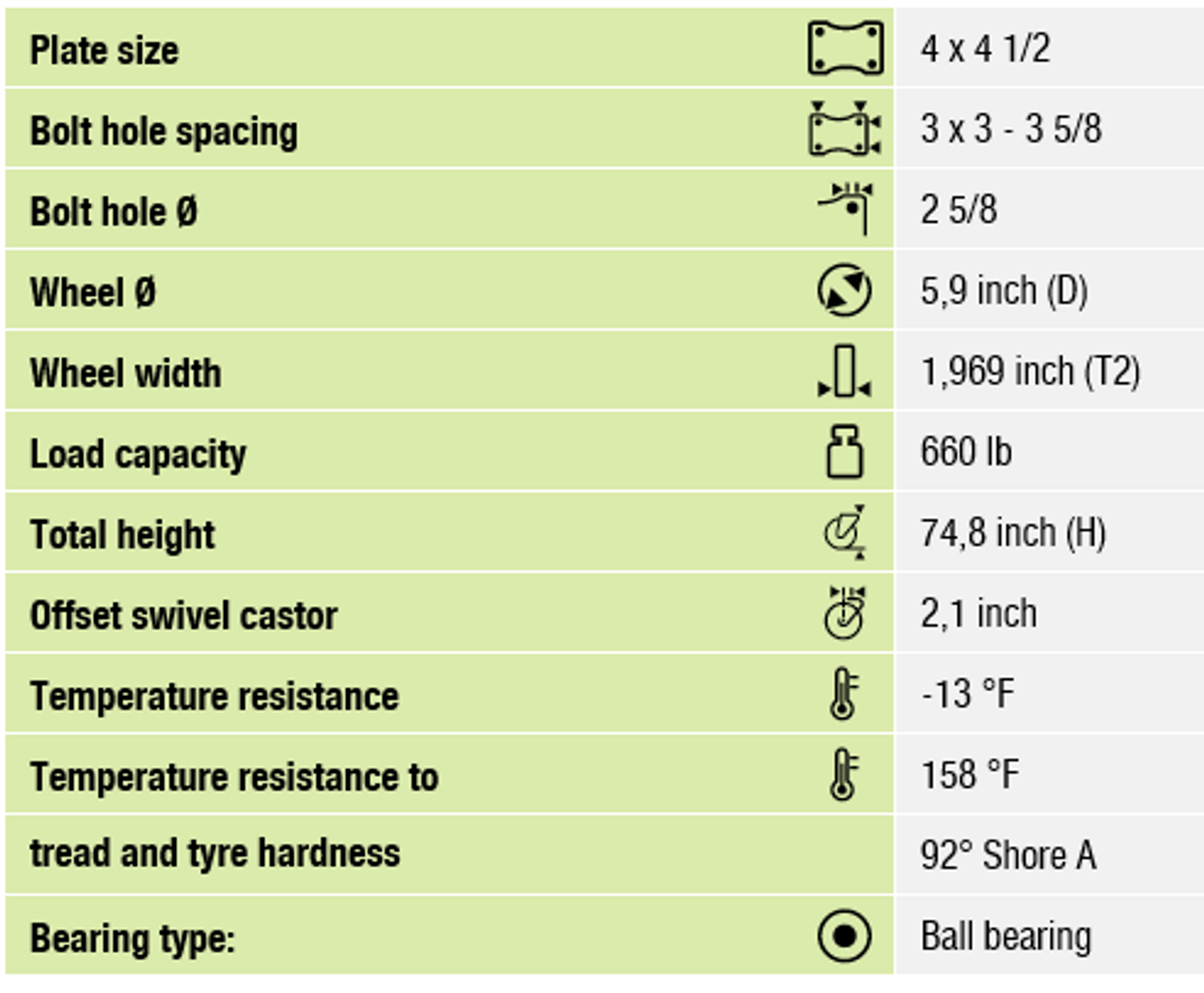

Custom Field
Caster Type Swivel
Wheel Diameter 6"
Tread Width 1-3/4"
Brake Yes
Mounting Type Top Plate
Mounting Size 4" x 4-1/2"
Bolt Hole Pattern 2-5/8" x 3-5/8" to 3" x 3"
Wheel Material Polyurethane
Overall Height 7-1/2"
Load Capacity 660 lbs
Finish Zinc
Wheel Bearing Ball Bearing
