Product Description
- 10" trailer duty swivel caster
- 10" x 3" domestic polyurethane on cast iron wheel with roller bearings
- 2500 pound capacity
- 12-7/8" height
- 11" x 8-1/2" top plate
- 9-3/4" x 7" bolt hole pattern
- For 5/8" mounting bolts
- 5/8" thick AISI 1045 top plate & yoke base
- 7" diameter load raceway
- 1" king bolt
- 3/4" hollow axle with grease fitting for lubrication

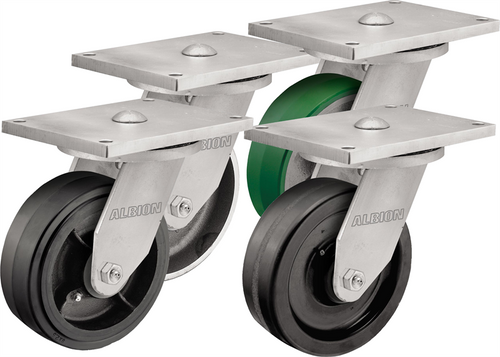

92 Series Casters are designed specifically for power drawn trailers. These casters allow for ease of operation even on poor floor or surface conditions.
Typical applications:
- Heavy duty trash dumpsters
- Trailer frames
- Automotive Plants
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 10"
Tread Width 3"
Brake No
Mounting Type Top Plate
Mounting Size 11" x 8-1/2"
Bolt Hole Pattern 9-3/4" x 7"
Wheel Material Polyurethane
Overall Height 12-7/8"
Load Capacity 2,500 lbs
Finish Zinc
Wheel Bearing Roller Bearing
