Product Description
- 90TM10501S

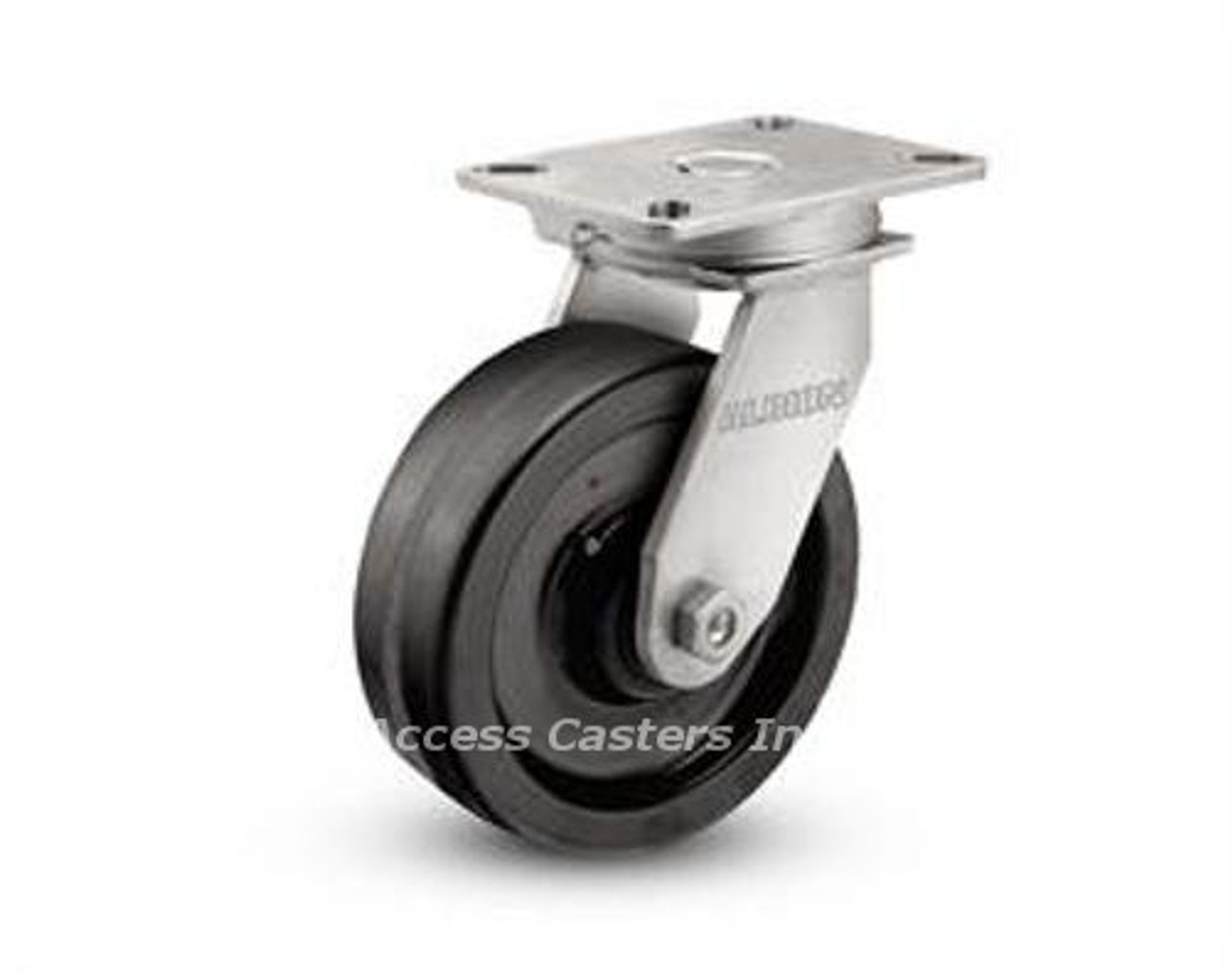

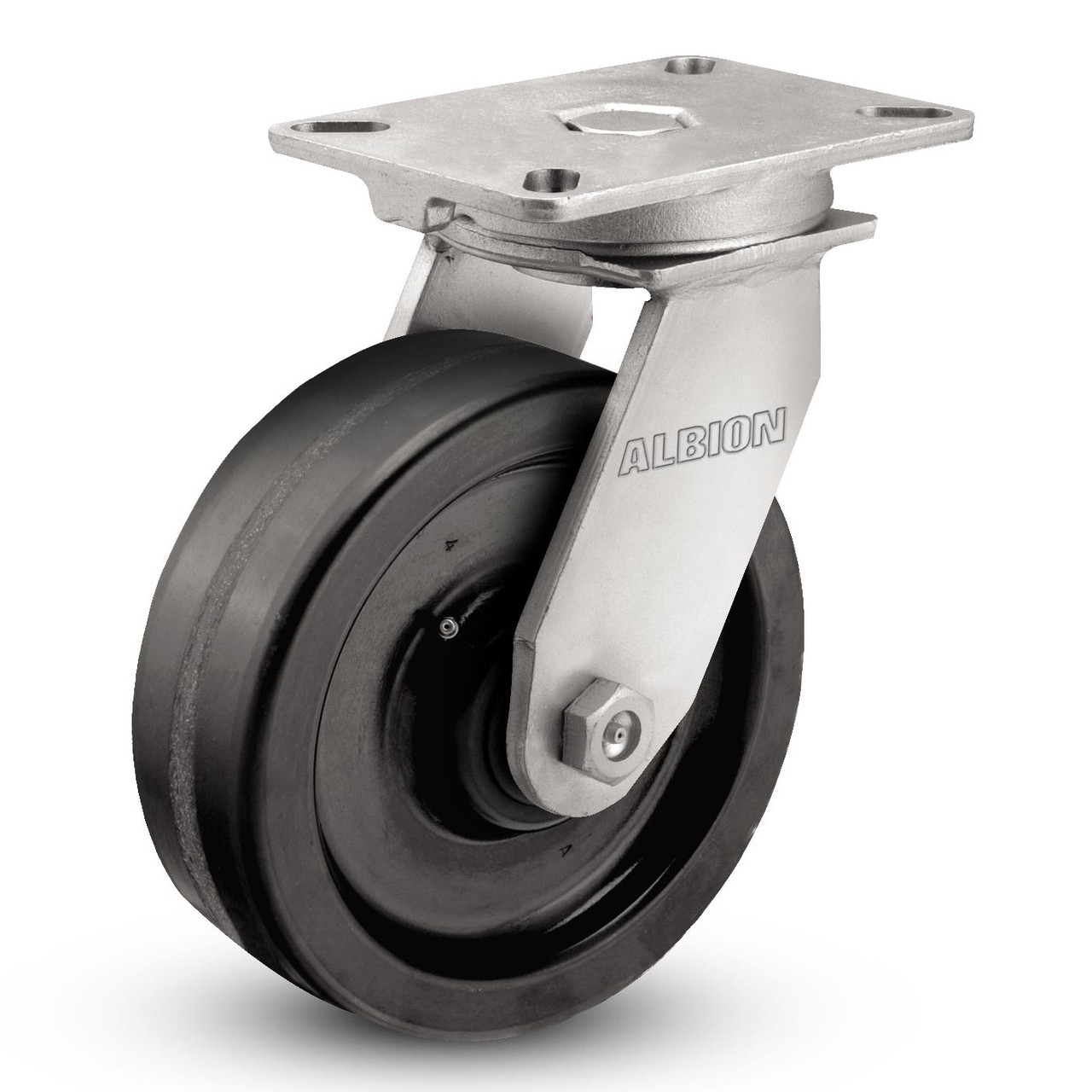

- Albion 10" 90 Series swivel caster
- 10" x 3" phenolic wheel with roller bearings
- 2,900 pound capacity
- 12-1/2" mounting height
- 2-1/2" swivel lead
- 5-1/4" x 7-1/4" top plate

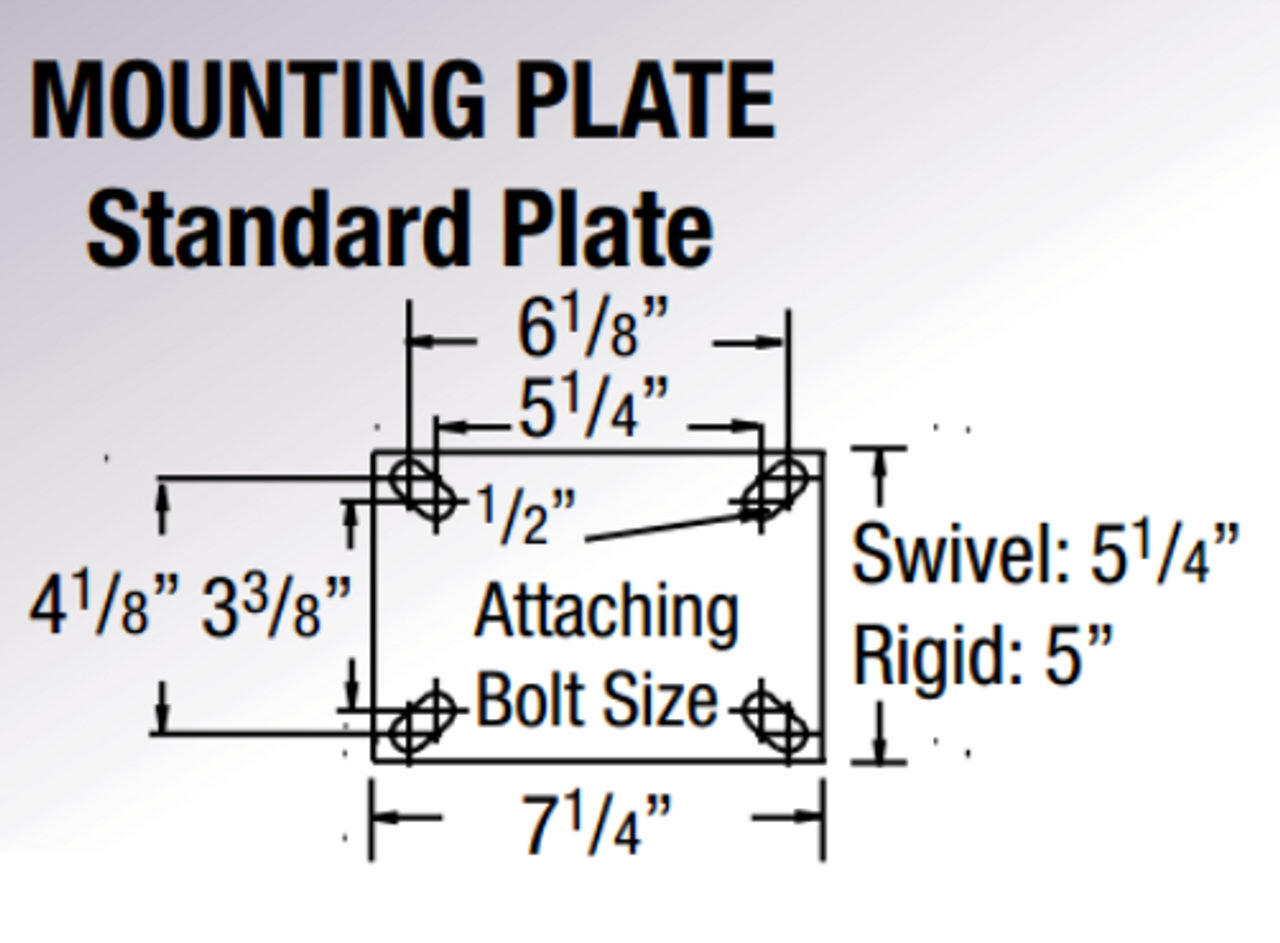

- 3-3/8" x 5-1/2" slotted to 4-1/8" x 6-1/8" bolt hole pattern
- NSN 5340-00-205-5610
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 10"
Tread Width 3"
Brake No
Mounting Type Top Plate
Mounting Size 5-1/4" x 7-1/4"
Bolt Hole Pattern 3-3/8" x 5-1/4" to 4-1/8" x 6-1/8"
Wheel Material Phenolic
Overall Height 12-1/2"
Load Capacity 2,900 lbs
Finish Zinc
Wheel Bearing Roller Bearing
