Product Description

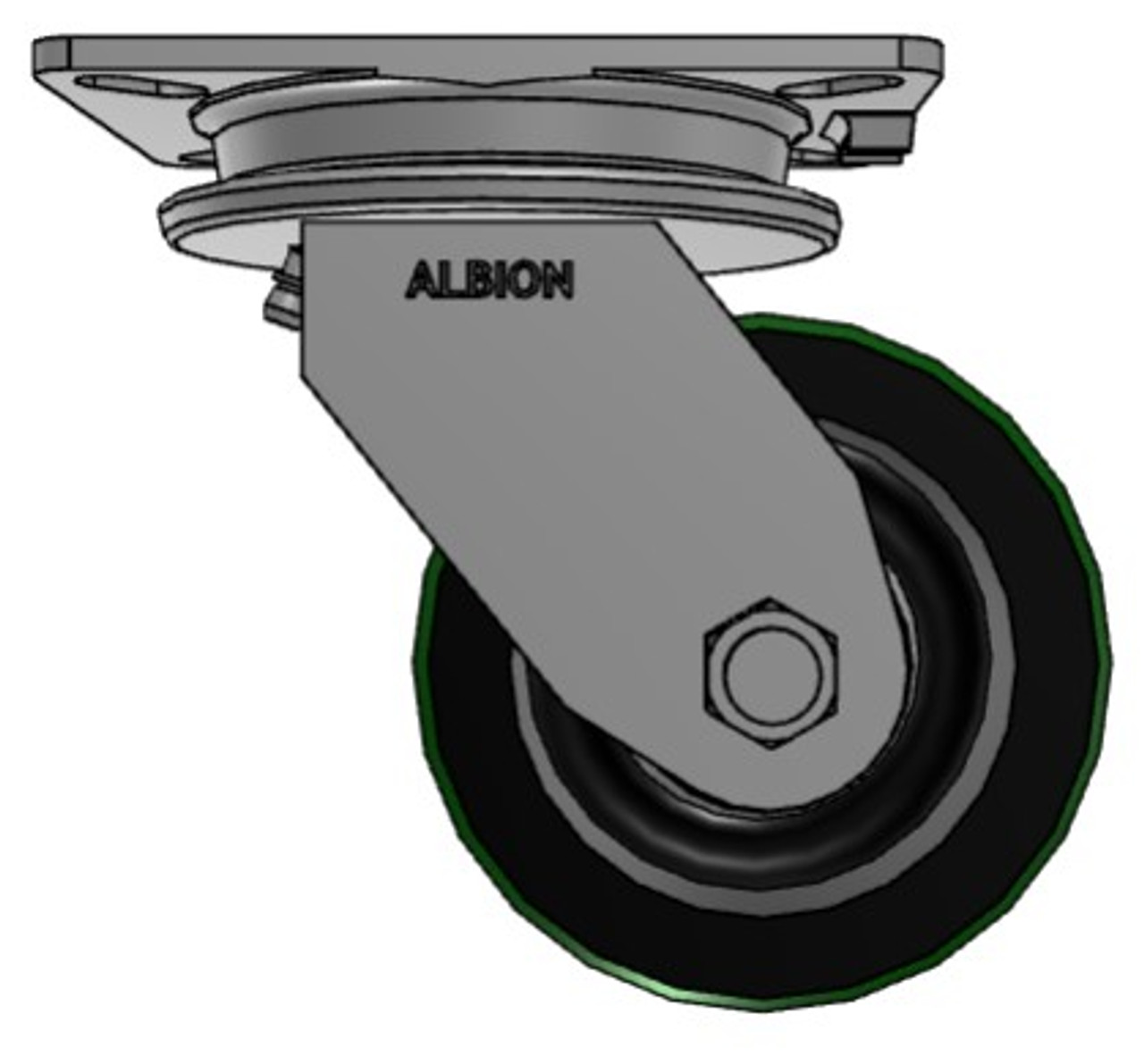

90PY06501S Albion 90 Series swivel caster
6" x 3" polyurethane on cast iron wheel with roller bearings
Green 95 Shore A durometer polyurethane
2,040 pound capacity
8" mounting height
5-1/4" x 7-1/4" top plate
2-1/2" swivel lead

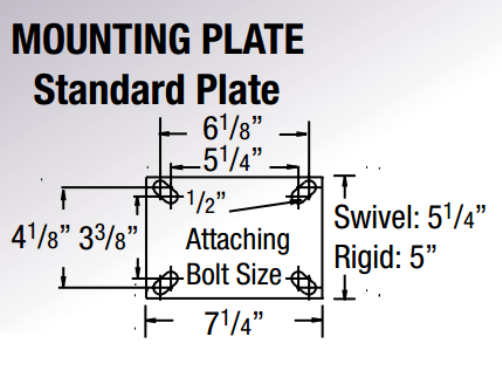

3-3/8" x 5-1/2" slotted to 4-1/8" x 6-1/8" bolt hole pattern
for 1/2" bolts
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 6"
Tread Width 3"
Brake No
Mounting Type Top Plate
Mounting Size 5-1/4" x 7-1/4"
Bolt Hole Pattern 3-3/8" x 5-1/2" to 4-1/8" x 6-1/8"
Wheel Material Polyurethane
Overall Height 5-1/4"
Load Capacity 2,040 lbs
Finish Zinc
Wheel Bearing Roller Bearing
