Product Description
90NX08528R Albion 90 Series rigid caster
8" x 3" Trionix hig impact polymer wheel with precision ball bearings
Machined polymer wheel 78-82 Shore D durometer
High capacity, floor protective wheel material
3,500 pound capacity
10-1/2" mounting height

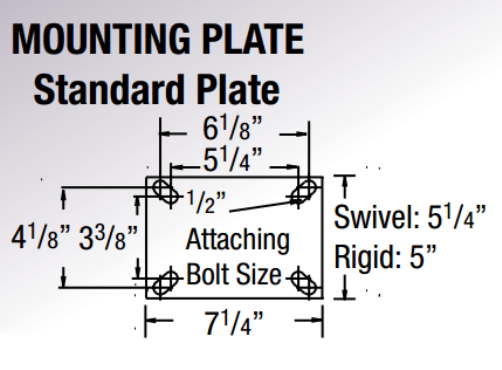

5" x 7-1/4" top plate
3-3/8" x 5-1/2" slotted to 4-1/8" x 6-1/8" bolt hole pattern
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Rigid
Wheel Diameter 8"
Tread Width 3"
Brake No
Mounting Type Top Plate
Mounting Size 5" x 7-1/4"
Bolt Hole Pattern 3-3/8" x 5-1/2" to 4-1/8" x 6-1/8"
Wheel Material Nylon
Overall Height 10-1/2"
Load Capacity 3,500 lbs
Finish Zinc
Wheel Bearing Precision Ball Bearing
