Product Description

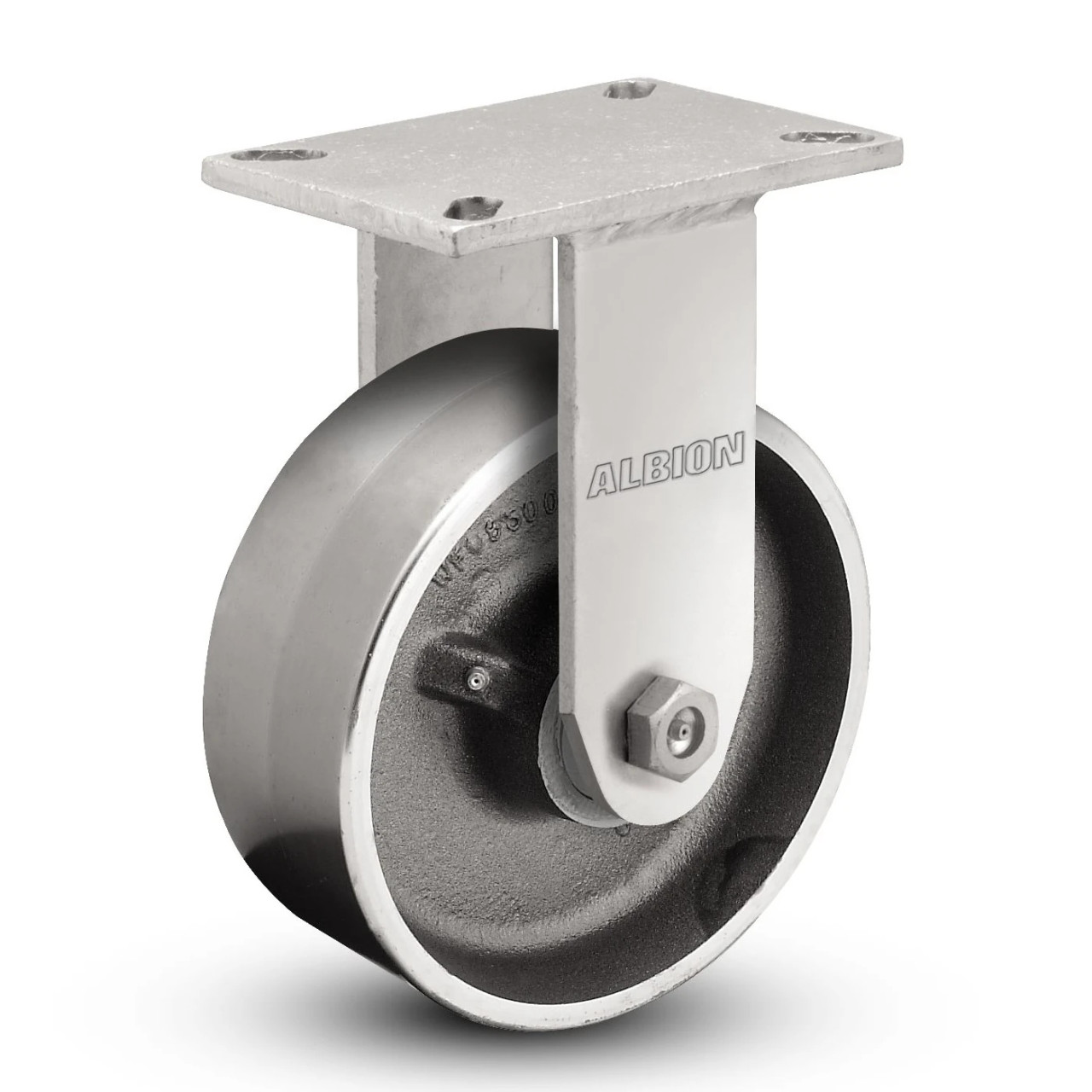

90FS10501R Albion 90 Series rigid caster
10" x 3" forged steel wheel with roller bearings
3,500 pound capacity
12-1/2" mounting height
5" x 7-1/4" top plate
3-3/8" x 5-1/2" slotted to 4-1/8" x 6-1/8" bolt hole pattern
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Rigid
Wheel Diameter 10"
Tread Width 3"
Brake No
Mounting Type Top Plate
Mounting Size 5" x 7-1/4"
Bolt Hole Pattern 3-3/8" x 5-1/2" to 4-1/8" x 6-1/8"
Wheel Material Forged Steel
Overall Height 12-1/2"
Load Capacity 3,500 lbs
Finish Zinc
Wheel Bearing Roller Bearing
