Product Description

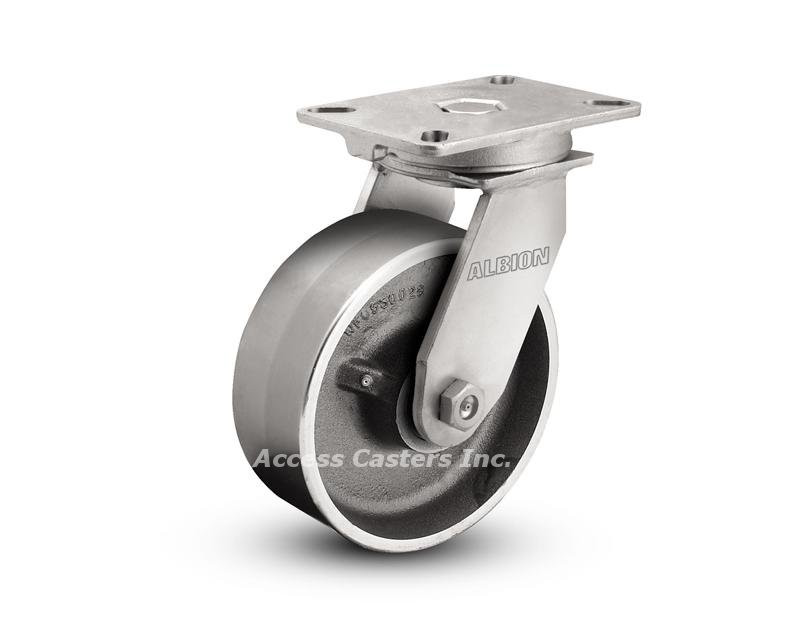

90FS08501S Albion 90 Series swivel caster
8" x 3" forged steel wheel with roller bearings
3,500 pound capacity
10-1/2" mounting height
5-1/4" x 7-1/4" top plate
2-1/2" swivel lead
3-3/8" x 5-1/2" slotted to 4-1/8" x 6-1/8" bolt hole pattern
for 1/2" bolts

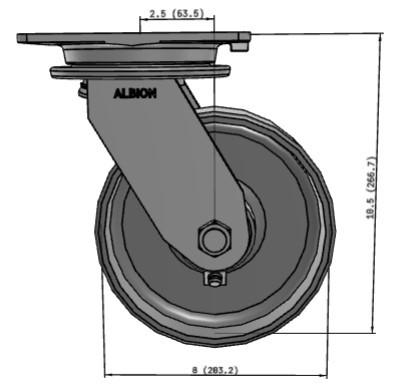

CAD DRAWINGS
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 8"
Tread Width 3"
Brake No
Mounting Type Top Plate
Mounting Size 5-1/4" x 7-1/4"
Bolt Hole Pattern 3-3/8" x 5-1/2" to 4-1/8" x 6-1/8"
Wheel Material Forged Steel
Overall Height 10-1/2"
Load Capacity 3,500 lbs
Finish Zinc
Wheel Bearing Roller Bearing
