Product Description

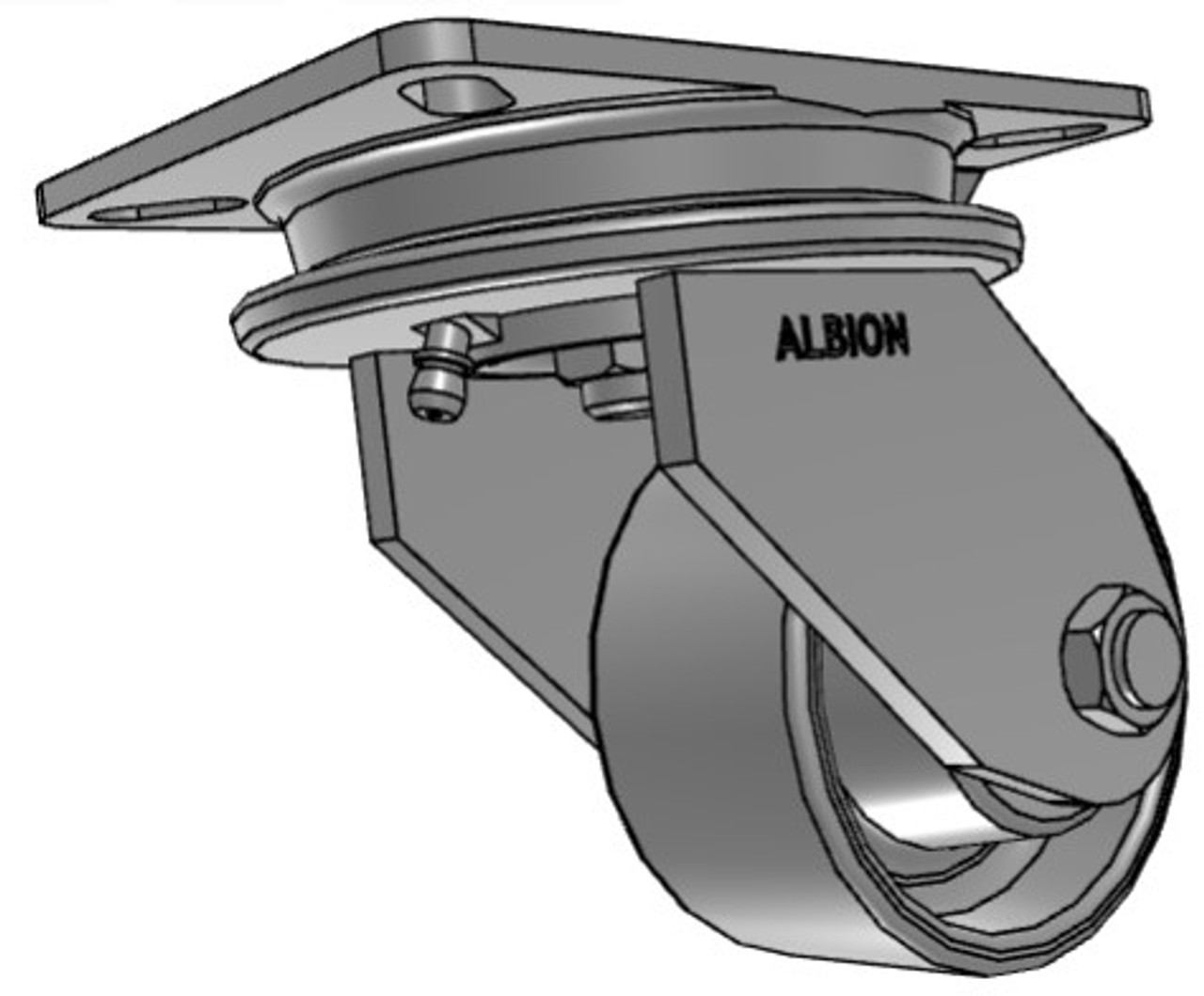

90CA05401S Albion 90 Series swivel caster
5" x 2-1/2" cast iron wheel with roller bearings
2,000 pound capacity
7" mounting height
5-1/4" x 7-1/4" top plate
2-1/2" swivel lead

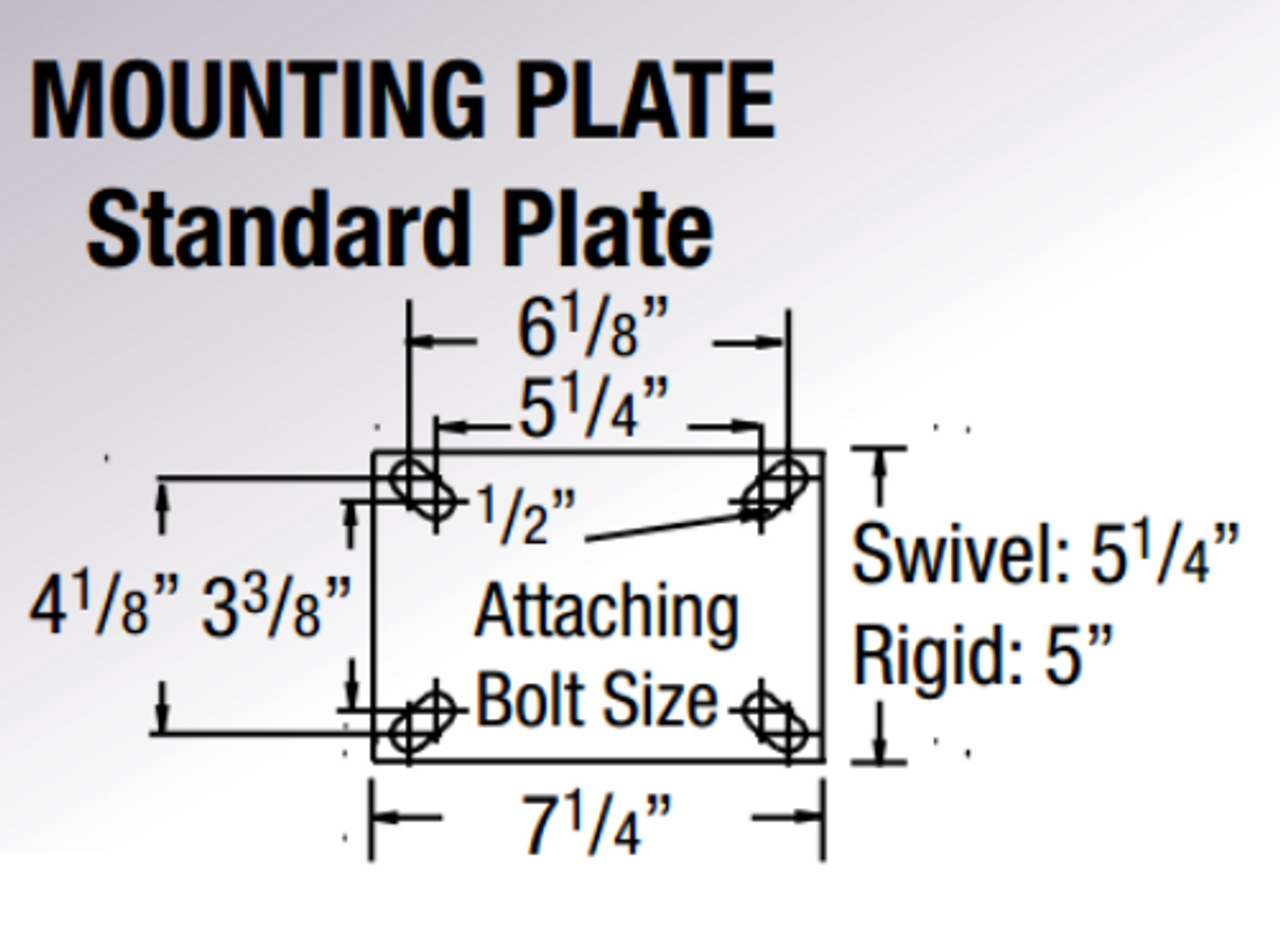

3-3/8" x 5-1/2" slotted to 4-1/8" x 6-1/8" bolt hole pattern
for 1/2" bolts
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 5"
Tread Width 2-1/2"
Brake No
Mounting Type Top Plate
Mounting Size 5-1/4" x 7-1/4"
Bolt Hole Pattern 3-3/8" x 5-1/2" to 4-1/8" x 6-1/8"
Wheel Material Cast Iron
Overall Height 7"
Load Capacity 2,000 lbs
Finish Zinc
Wheel Bearing Roller Bearing
