Product Description

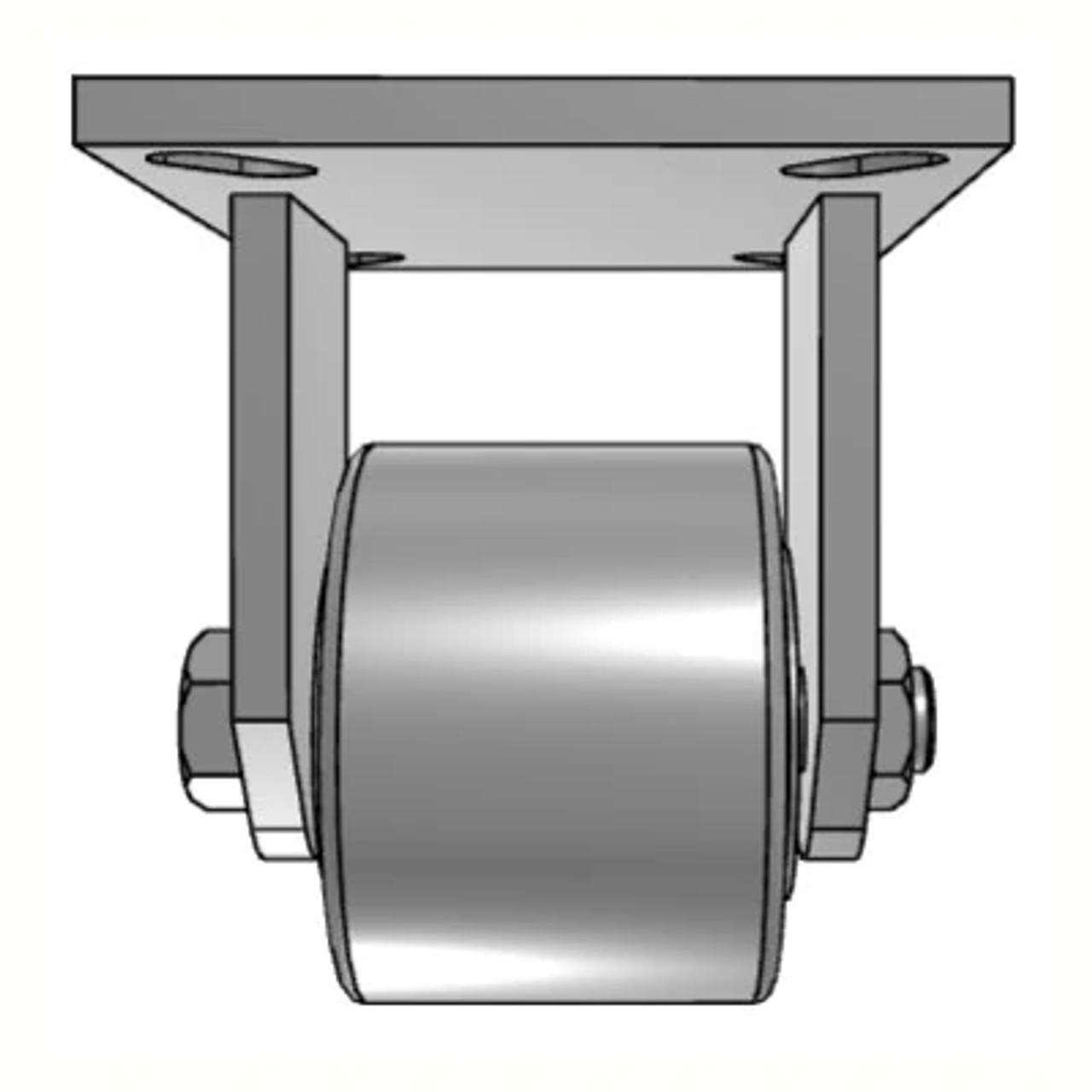

90CA04501R Albion 90 Series rigid caster
4" x 3" cast iron wheel with roller bearings
2,000 pound capacity
6" mounting height
5" x 7-1/4" top plate

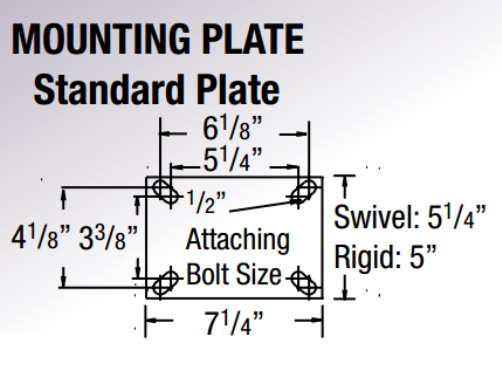

3-3/8" x 5-1/2" slotted to 4-1/8" x 6-1/8" bolt hole pattern
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Rigid
Wheel Diameter 4"
Tread Width 3"
Brake No
Mounting Type Top Plate
Mounting Size 5" x 7-1/4"
Bolt Hole Pattern 3-3/8" x 5-1/2" to 4-1/8" x 6-1/8"
Wheel Material Cast Iron
Overall Height 6"
Load Capacity 2,000 lbs
Finish Zinc
Wheel Bearing Roller Bearing
