Product Description
|

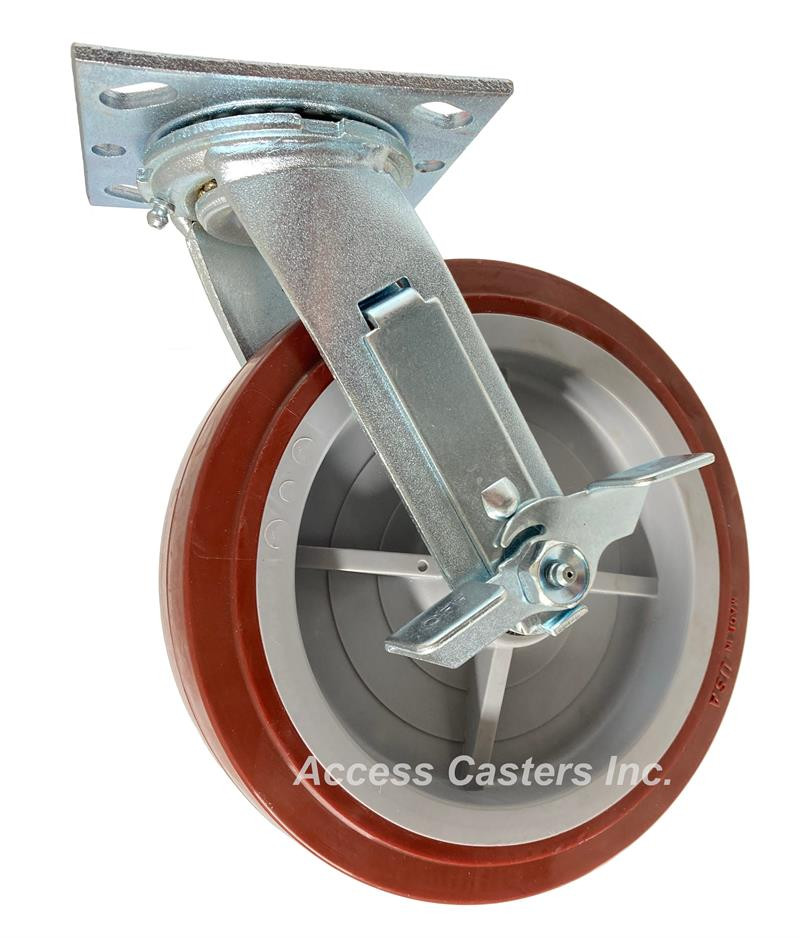

8" x 2" Polyurethane on Polypropylene wheel
with roller bearings
Swivel Caster with Brake 800 lbs load capacity 9 1/2" overall height 4" x 4 1/2" overall plate size 3" x 3" slotted to 2-5/8" x 3-5/8" bolt hole pattern
Used for Dollies, Waste Disposal Trucks, Warehouse Trucks, Floor Trucks, and Shop Carts
|
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 8"
Tread Width 2"
Brake Yes
Mounting Type Top Plate

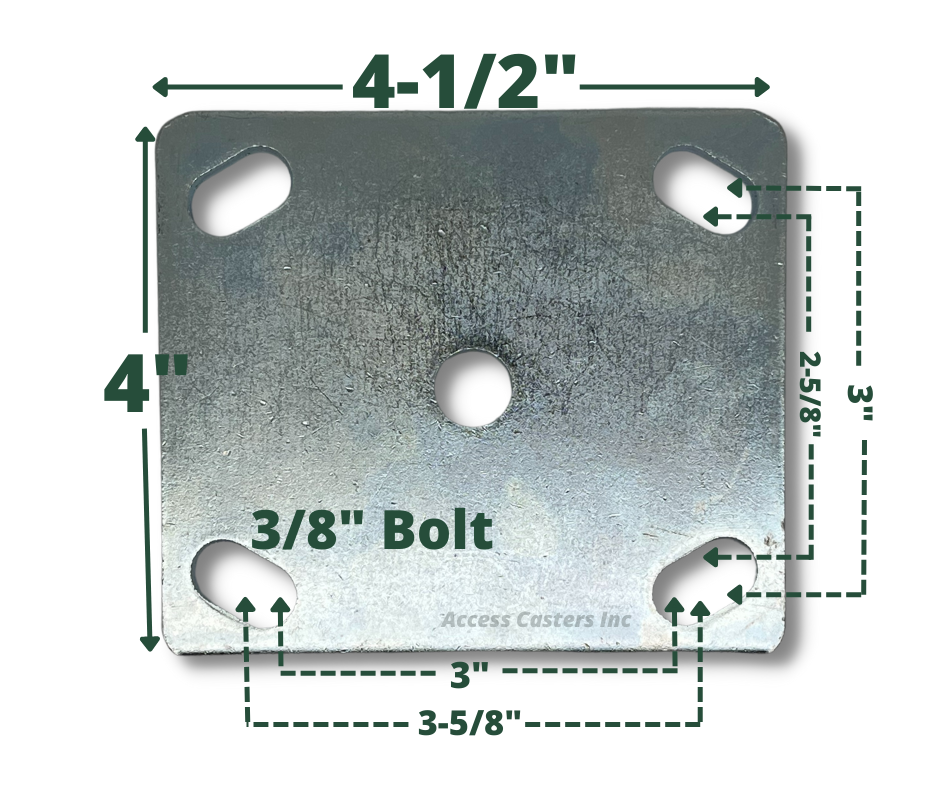

Mounting Size 4" x 4-1/2"
Bolt Hole Pattern 3" x 3" to 2-5/8" x 3-5/8"
Wheel Material Polyurethane
Overall Height 9-1/2"
Load Capacity 800 lbs
Finish Zinc
Wheel Bearing Roller Bearing
