Product Description
850PX12809S

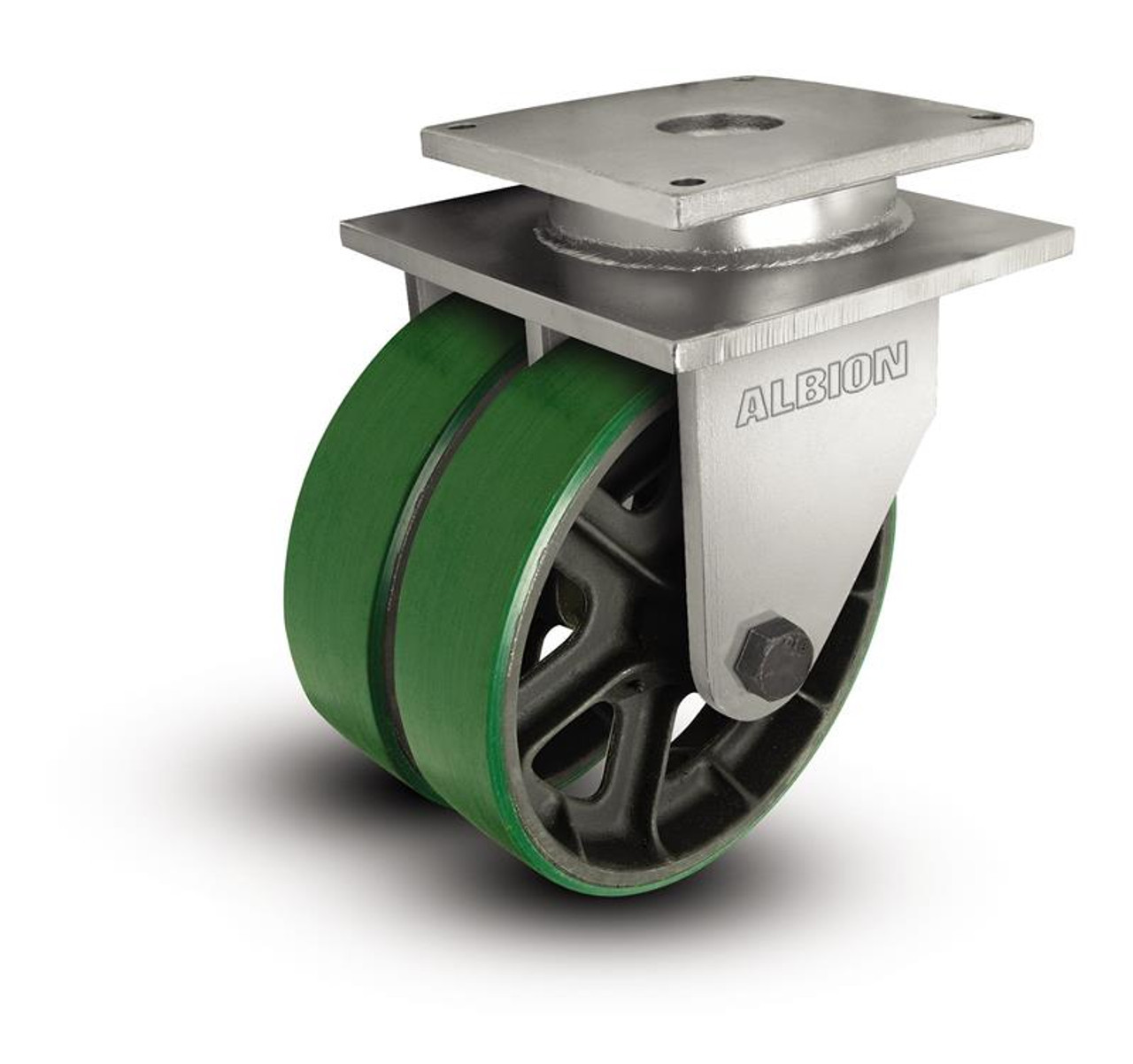

Albion Dual Wheel Shockmaster Kingpinless Swivel Caster
- Wheels: Two 12" x 6" thick tread (1") polyurethane on cast iron wheels with tapered bearings
- Durometer: 95 Shore A
- Capacity: 16,500 pounds
- Mounting Height: 15-3/4"
- Swivel Section: Kingpinless
- Top plate: 12" x 12"
- Bolt hole pattern: 10" x 10"
- Swivel Lead: 3-1/4"
FEATURES
- Top Plate: 3/4" thick AISI 1045 steel one-piece forging precision machined and through-hardened for long life
- Yoke Base: AISI 1045 steel forging welded using 100,000 psi weld filler to 3/4" thick adapter plate
- Swivel Section: 7/8" ball bearings mounted in a 7" diameter precision machined raceway
- Legs: 3/4" thick through-hardened steel welded to yoke base using 100,000 psi weld filler
- Axle: 1-1.4" diameter
- Lubrication: Zerk fitting in swivel section and wheel hubs
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 12"
Tread Width 6"
Brake No
Mounting Type Top Plate
Mounting Size 12" x 12"
Bolt Hole Pattern 10" x 10"
Wheel Material Polyurethane
Overall Height 15-3/4"
Load Capacity 16,500 lbs
Finish Zinc
Wheel Bearing Tapered Roller Bearing
