Product Description
- 8" pneumatic rigid caster
- 2.80/4 4-ply tire with sawtooth tread
- 295 pound load rating
- 11" mounting height
- Hot forged heavy duty swivel section
- 2-5/8" swivel lead
- 4-1/2" x 6-1/4" top plate
- 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" bolt hole pattern
- Zinc plate finish
- NSN 5340-01-176-7474
- Normal lead time is 2 weeks.

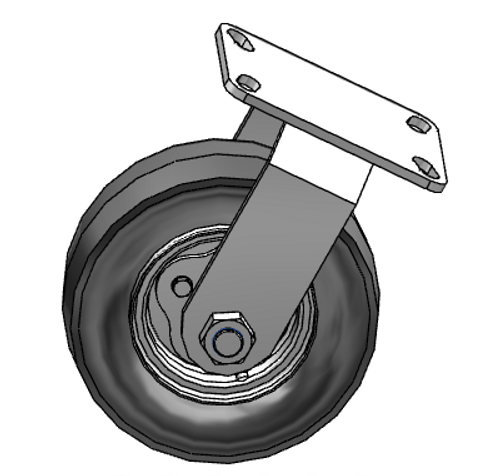

CAD DRAWINGS
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 8"
Tread Width 2"
Brake No
Mounting Type Top Plate
Mounting Size 4-1/2" x 6-1/4"
Bolt Hole Pattern 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4"
Wheel Material Pneumatic
Overall Height 11"
Load Capacity 295 lbs
Finish Zinc
Wheel Bearing Precision Ball Bearing
