Product Description

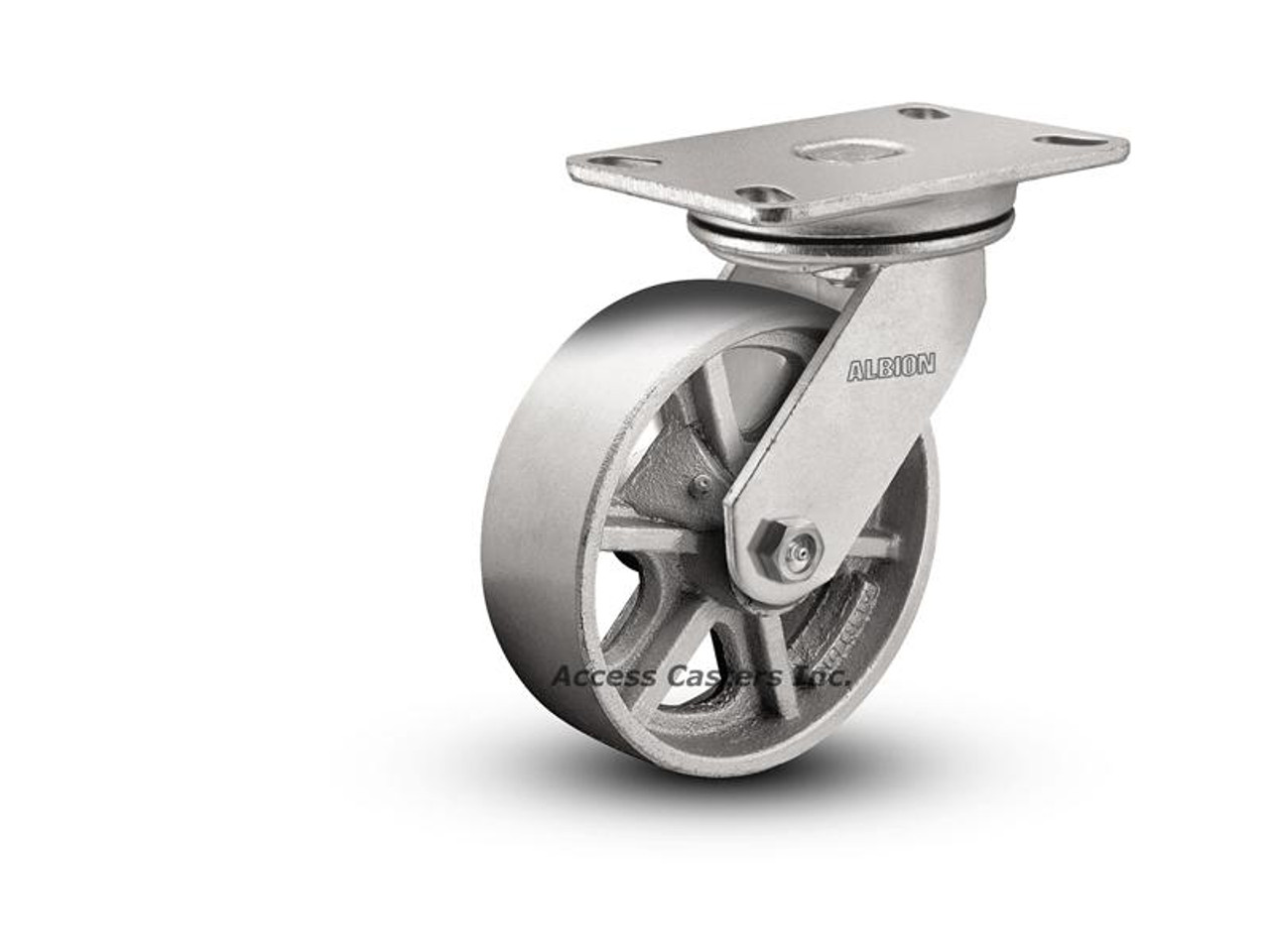

- Albion 72 Series swivel caster
- 8" x 2-1/2" cast iron wheel with roller bearings
- 1600 pound capacity
- 10-1/8" mounting height
- 4-1/2" x 6-1/4" top plate
- 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" bolt hole pattern
- Hot forged construction for extended life and rugged applications

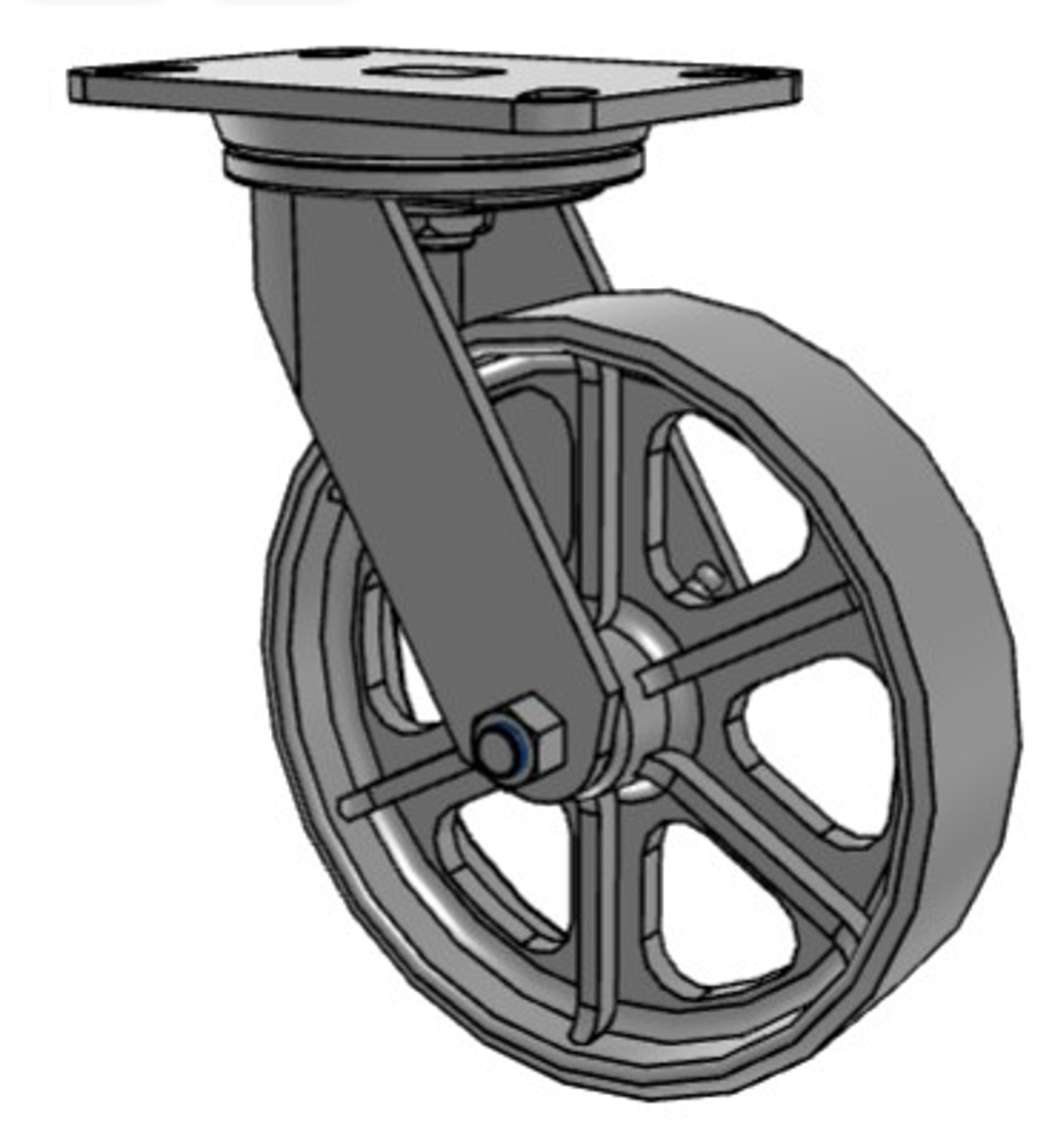

CAD DRAWINGS
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 8"
Tread Width 2-1/2"
Brake No
Mounting Type Top plate
Mounting Size 4-1/2" x 6-1/4"
Bolt Hole Pattern 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4"
Wheel Material Cast Iron
Overall Height 10-1/8"
Load Capacity 1,600 lbs
Finish Zinc
Wheel Bearing Roller Bearing
