Product Description
- Albion 72 Series rigid caster
- 8" x 2" cast iron wheel with roller bearings
- 1600 pound capacity
- 10-1/8" mounting height

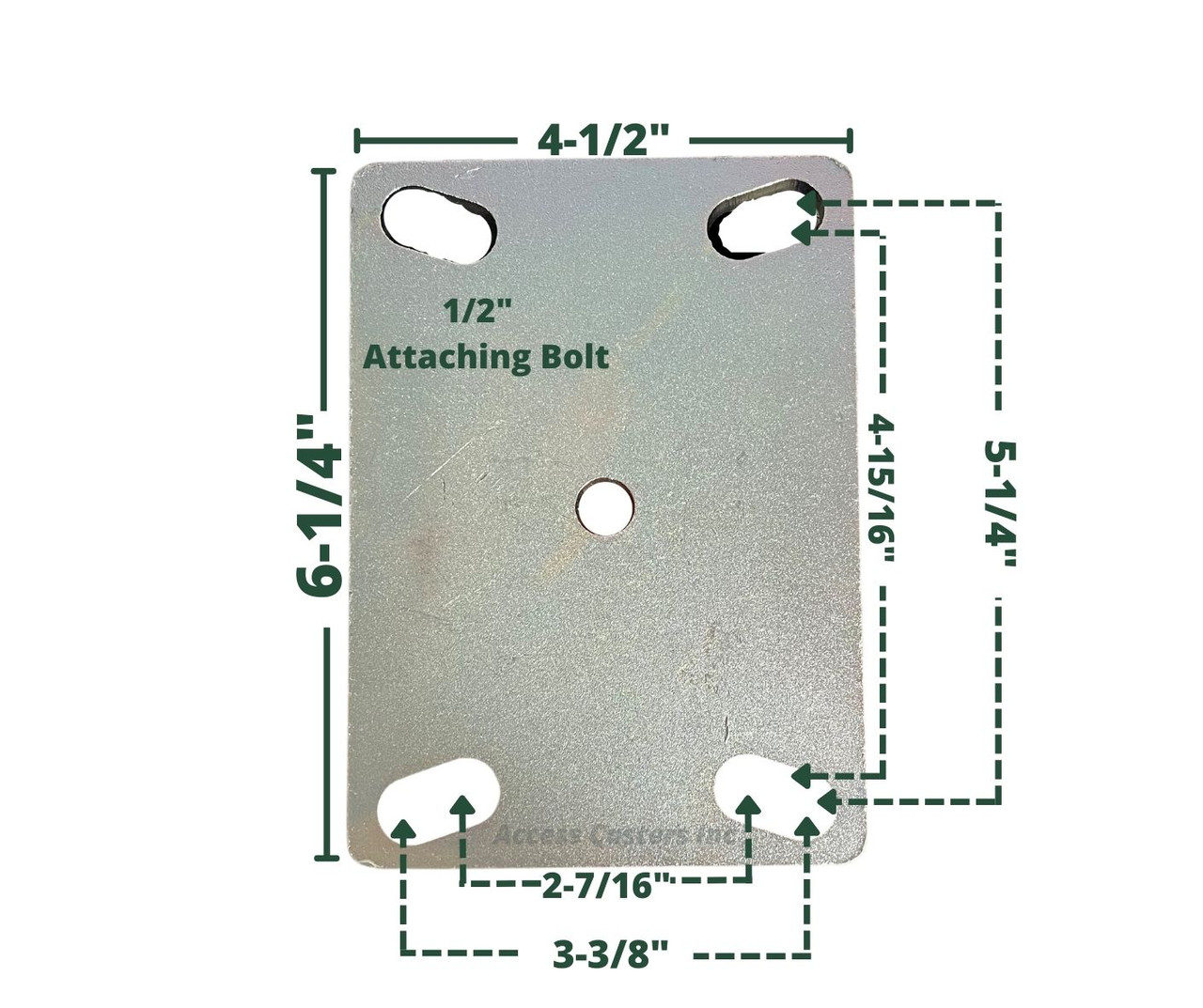

- 4-1/2" x 6-1/4" top plate
- 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" bolt hole pattern
- Hot forged construction for extended life and rugged applications
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Rigid
Wheel Diameter 8"
Tread Width 2"
Brake No
Mounting Type Top plate
Mounting Size 4-1/2" x 6-1/4"
Bolt Hole Pattern 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4"
Wheel Material Cast Iron
Overall Height 10-1/8"
Load Capacity 1,600 lbs
Finish Zinc
Wheel Bearing Roller Bearing
