Product Description

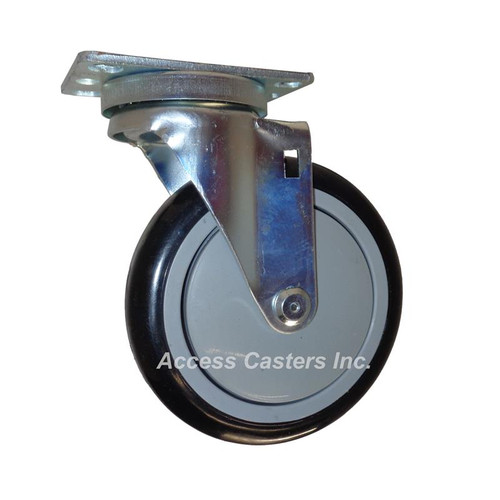

5" Polyurethane Single Wheel
Swivel Caster
150 lbs load capacity
5 7/8" mounting height
Zinc finish, Double ball bearing raceways
Heat treated raceways for increased wear resistance
NSF approved less thread guards
RoHS compliant
Plate size available
2 5/8 X 3 3/4
Must purchase Carton Quantities of 15 or more
Used for Display and Store Fixtures, Carts, Institutional Equipment,
Medical Equipment, and Furniture
Swivel Caster
150 lbs load capacity
5 7/8" mounting height
Zinc finish, Double ball bearing raceways
Heat treated raceways for increased wear resistance
NSF approved less thread guards
RoHS compliant
Plate size available
2 5/8 X 3 3/4
Must purchase Carton Quantities of 15 or more
Used for Display and Store Fixtures, Carts, Institutional Equipment,
Medical Equipment, and Furniture
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 5"
Tread Width 13/16"
Brake No
Mounting Type Top plate
Mounting Size 2-5/8" x 3-3/4"
Bolt Hole Pattern 1-3/4" x 2-3/4"
Wheel Material Polyurethane
Overall Height 5-7/8"
Load Capacity 150 lbs
Finish Zinc
Wheel Bearing Plain
