Product Description
|
12" x 3" Poly on Cast Iron wheel
Rigid Caster 3420 lbs load capacity 15-1/2" overall height 5" x 7-1/4" Top Plate 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8" bolt holes
Roller Bearing
3/8" AISI 1045 heat treated steel. Standard lead time is two weeks.
Used for Conveyor-drawn tow trucks, heavy duty bakery racks, production dollies, heavy duty dough troughs, etc.
 |
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Rigid
Wheel Diameter 12"
Tread Width 3"
Brake No
Mounting Type Top Plate
Mounting Size 5" x 7-1/4"

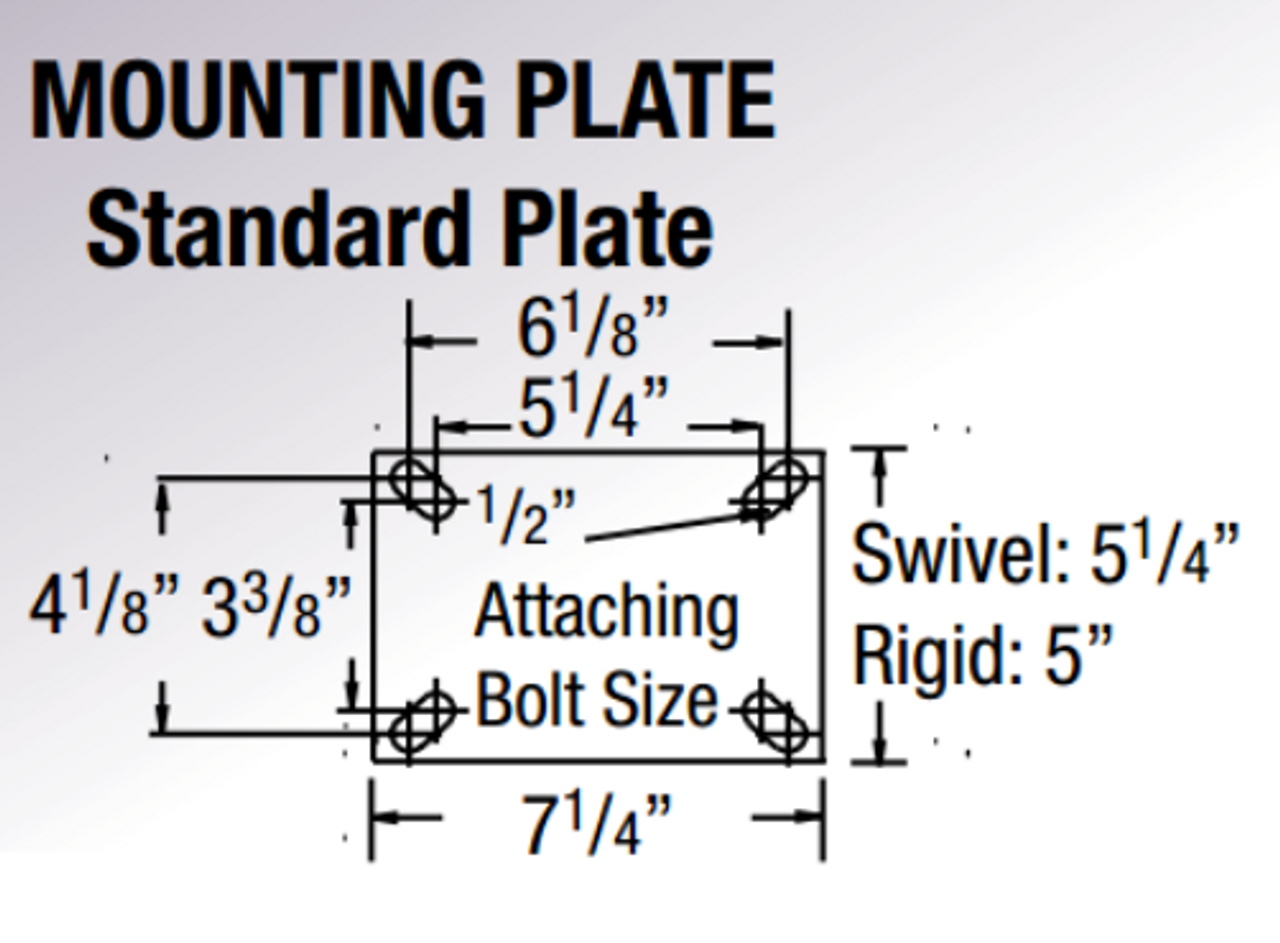

Bolt Hole Pattern 3-3/8" x 5-1/4" to 4-1/8" x 6-1/8"
Wheel Material Polyurethane
Overall Height 15-1/2"
Load Capacity 3,420 lbs
Finish Zinc
Wheel Bearing Roller Bearing
