Product Description
|
10" x 3" Poly on Cast Iron wheel

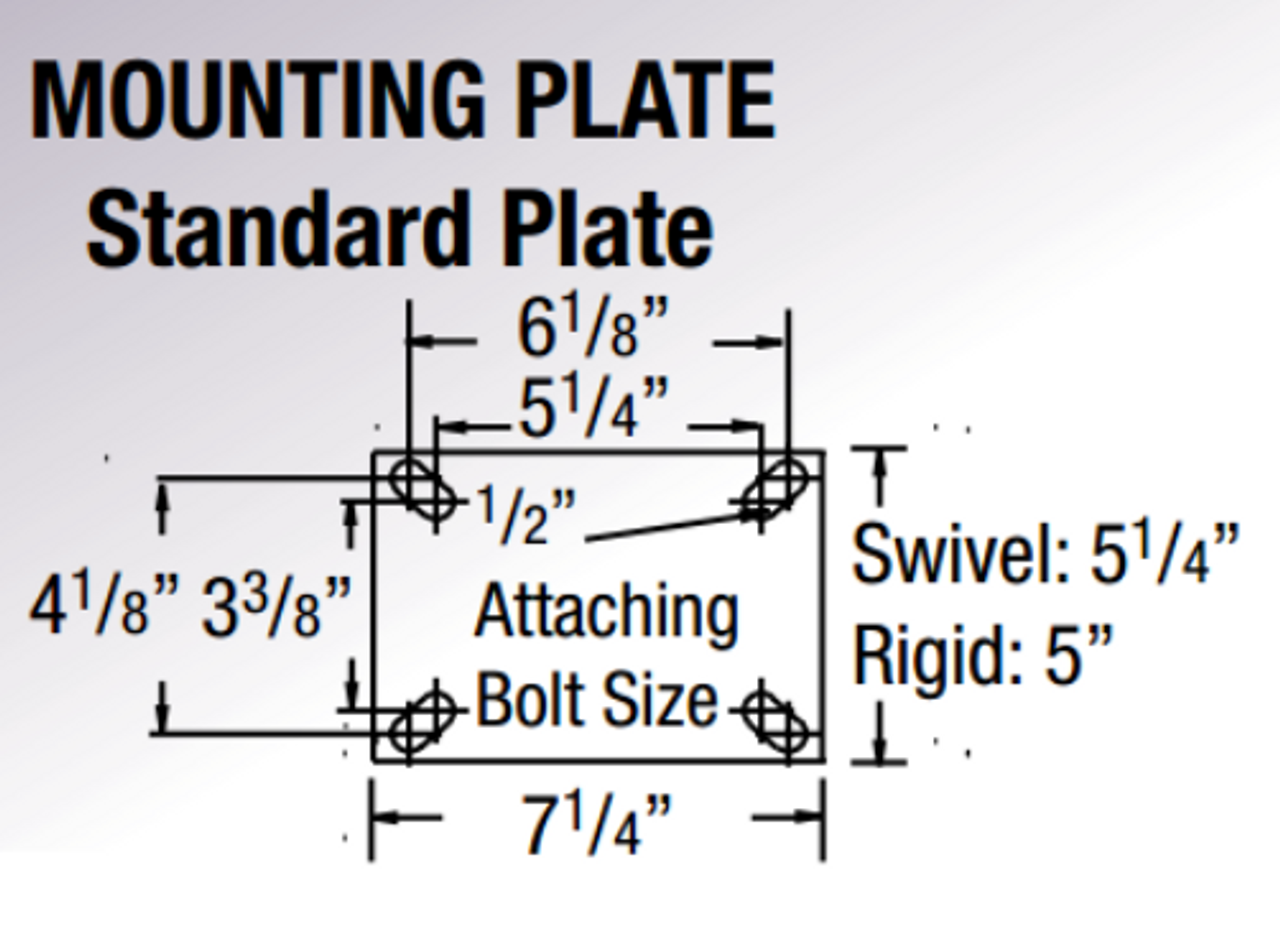

Rigid Caster 3000 lbs load capacity 12-1/2" overall height 5" x 7-1/4" Top Plate 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8" bolt holes
Tapered Roller Bearing
5/16" AISI 1045 heat treated steel. Standard lead time is 14 days.
Tapered bearing make this caster better suited for power towing applicatons. Used for Body Dolly Carts, Engine Dollies, Material Carts, Paint Line Dollies, Towed Trash Gondolas, Chassis Rack Carts, and Production Dollies
 |
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Rigid
Wheel Diameter 10"
Tread Width 3"
Brake No
Mounting Type Top Plate
Mounting Size 5" x 7-1/4"
Bolt Hole Pattern 3-3/8" x 5-1/4" to 4-1/8" x 8-1/8"
Wheel Material Polyurethane
Overall Height 12-1/2"
Load Capacity 3,000 lbs
Finish Zinc
Wheel Bearing Tapered Roller Bearing
