Product Description
|

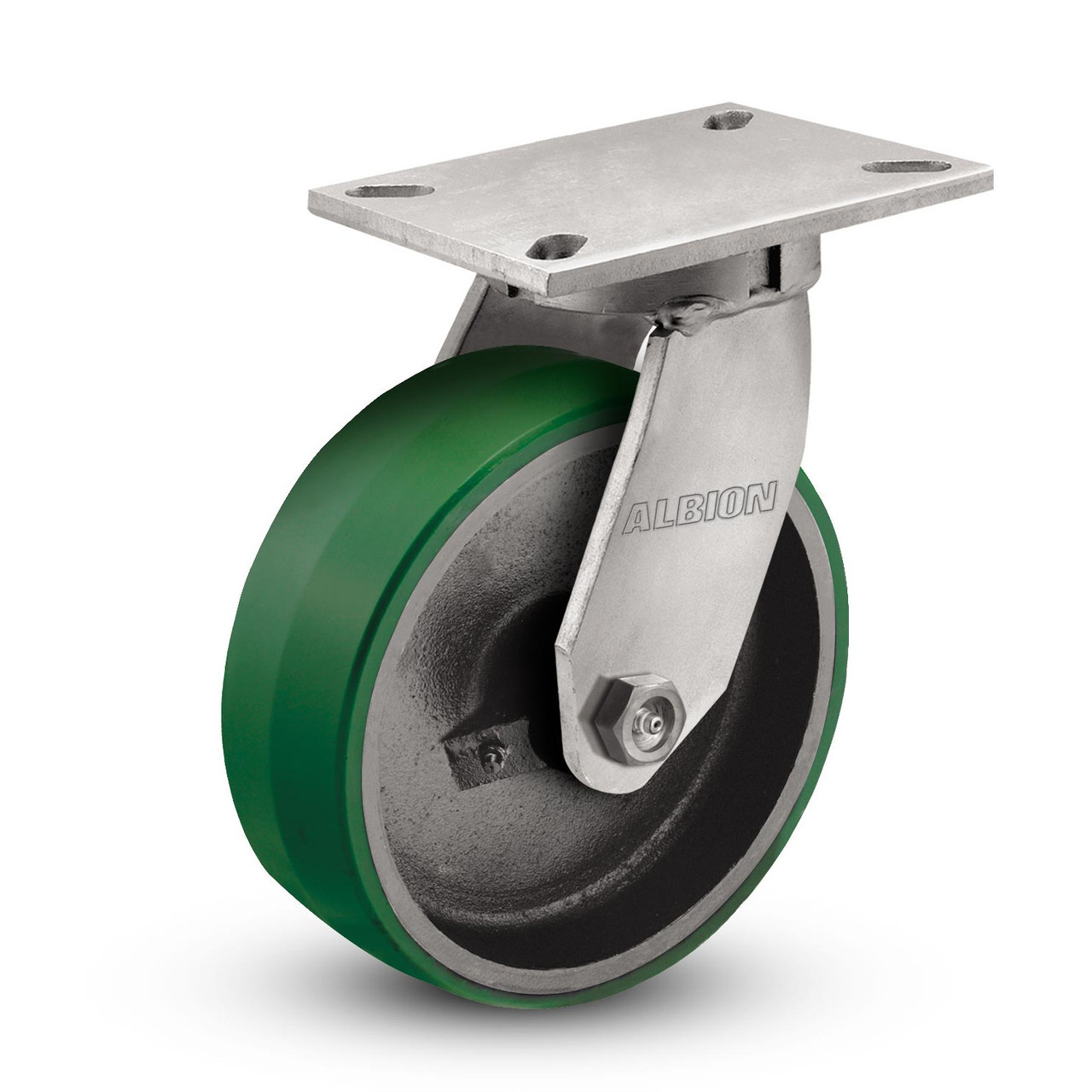

8" x 3" Poly on Cast Iron wheel
Kingpinless Swivel Caster 2500 lbs load capacity 10-1/2" overall height 5-1/4" x 7-1/4" Top Plate 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8" bolt holes
Roller Bearing
5/16" AISI 1045 heat treated steel. Standard lead time is 7-14 days.
Used for Conveyor-drawn tow trucks, heavy duty bakery racks, production dollies, heavy duty dough troughs, etc.
 |
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 8"
Tread Width 3"
Brake No
Mounting Type Top Plate
Mounting Size 5-1/4" x 7-1/4"
Bolt Hole Pattern 3-3/8" x 5-1/4" to 4-1/8" x 6-1/8"
Wheel Material Polyurethane
Overall Height 10-1/2"
Load Capacity 2,500 lbs
Finish Zinc
Wheel Bearing Roller Bearing
