Product Description
10" x 3" Forged Steel wheel

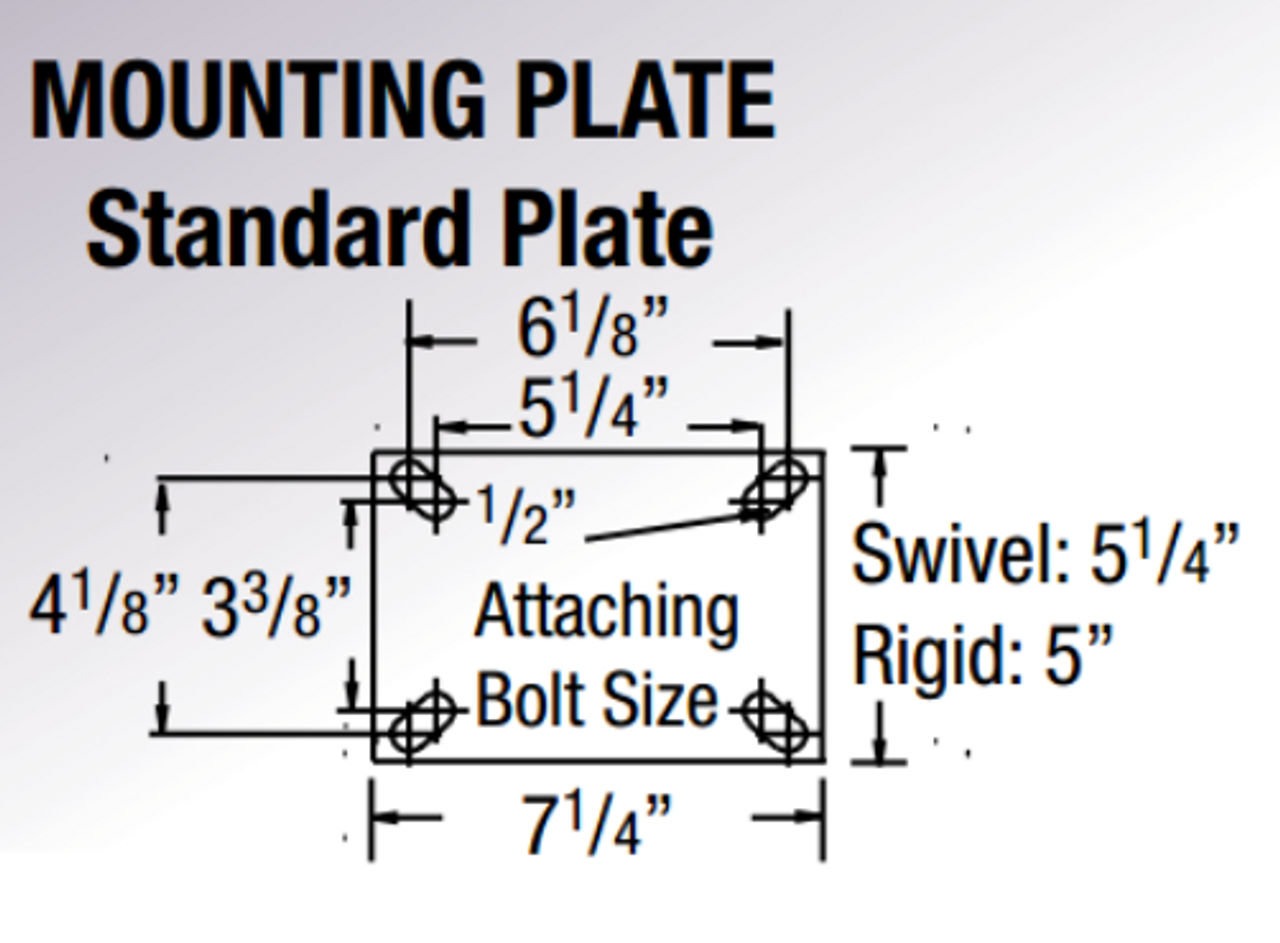

Swivel Caster 5400 lbs load capacity 12-1/2" overall height 5-1/4" x 7-1/4" Top Plate 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8" bolt holes
Optional brake or swivel lock available
5/16" AISI 1045 heat treated steel. Standard lead time is 7 days.
Used for Conveyor-drawn tow trucks, heavy duty bakery racks, production dollies, heavy duty dough troughs, etc.
![]() |
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 10"
Tread Width 3"
Brake No
Mounting Type Top Plate
Mounting Size 5-1/4" x 7-1/4"
Bolt Hole Pattern 3-3/8" x 5-1/4" to 4-1/8" x 6-1/8"
Wheel Material Forged Steel
Overall Height 12-1/2"
Load Capacity 5,400 lbs
Finish Zinc
Wheel Bearing Tapered Roller Bearing
