Product Description
Shock Absorbing Swivel Caster
6" x 2" Conductive soft rubber wheel with roller bearings
Meet the requirements of Federal specification FF-C-88C
Average electrical resistance of less than 250,000 ohms
8-1/2" mounting height
500 pound capacity
1-3/4" swivel lead
Maximum rated capacity loads will deflect wheel approximately 3/8".

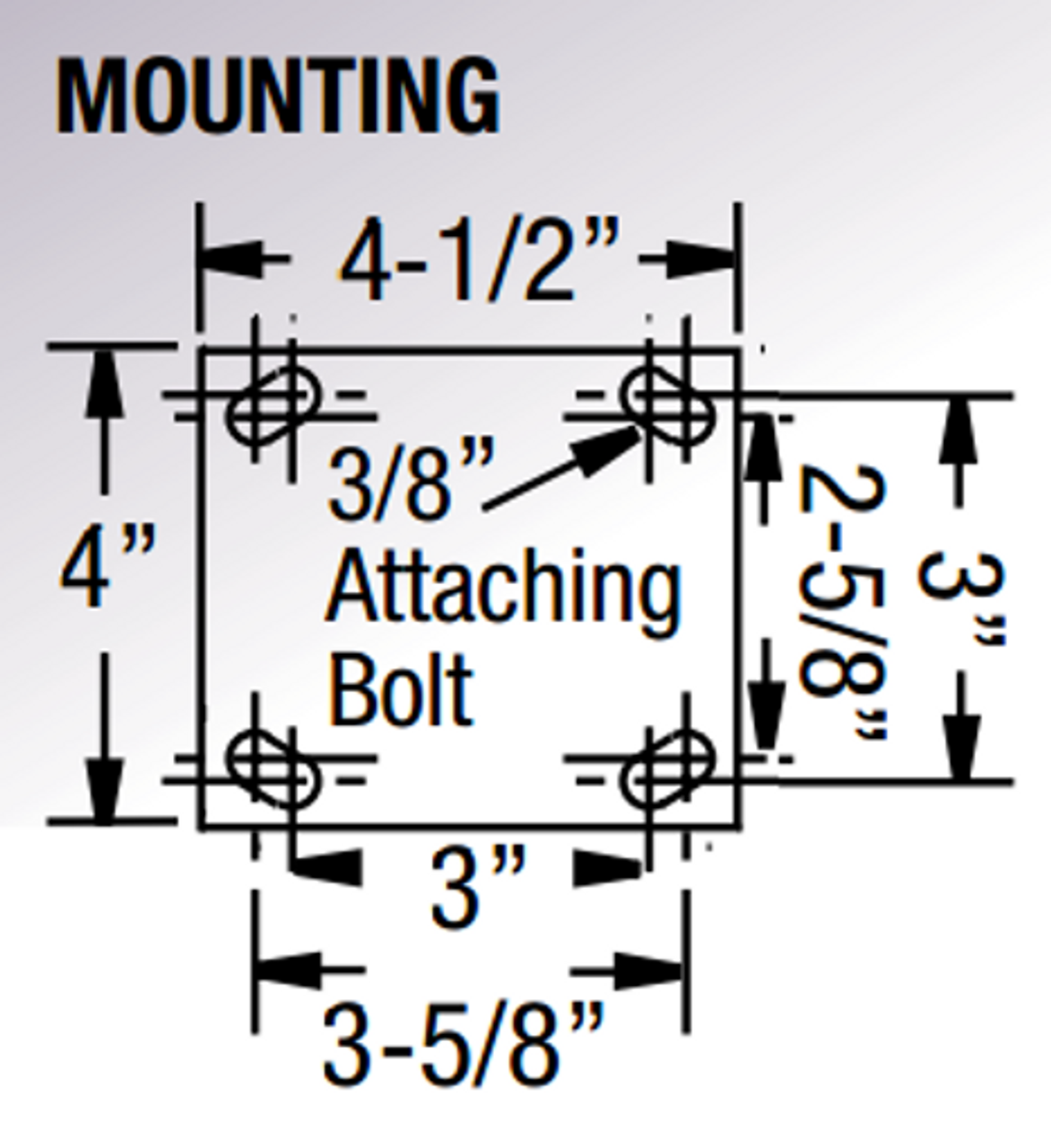

4" x 4-1/2" top plate
3" x 3" slotted to 2-5/8" x 3-5/8" bolt hole pattern for 3/8" bolts
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 6"
Tread Width 2"
Brake No
Mounting Type Top Plate
Mounting Size 4" x 4-1/2"
Bolt Hole Pattern 3" x 3" to 2-5/8" x 3-5/8"
Wheel Material Soft Rubber
Overall Height 8-1/2"
Load Capacity 500 lbs
Finish Zinc
Wheel Bearing Roller Bearing
