Product Description
Colson 4 Series 6" swivel caster- 8" x 2" black polyolefin wheel with roller bearings
- 900 pound capacity
- 9-1/2" mounting height

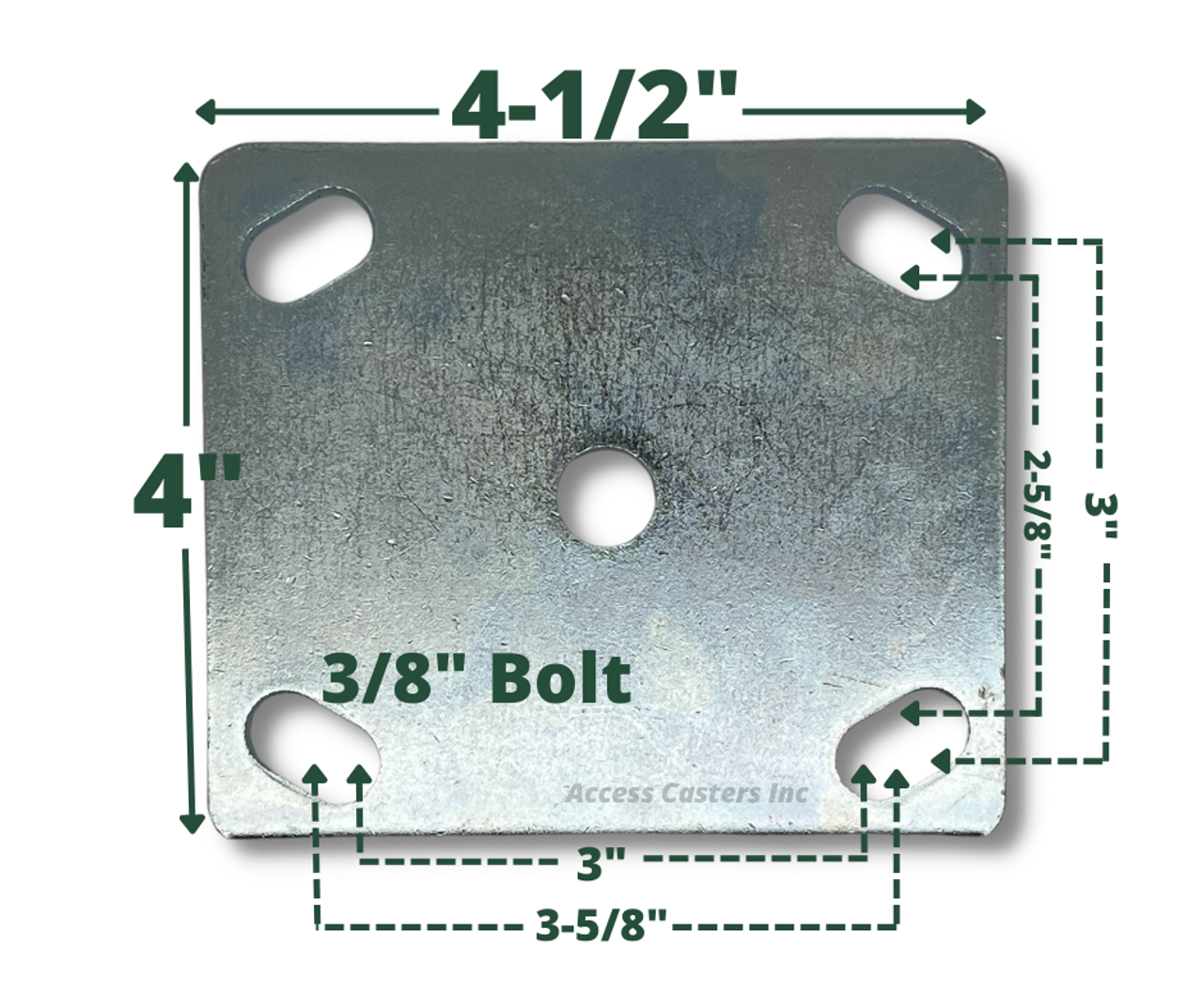

- 4" x 4-1/2" top plate
- 3" x 3" slotted to 2-5/8" x 3-5/8" bolt hole
- 5" swivel radius
- 1/4" thick steel top plate
- Grease fitting in axle and swivel section
- Full double ball hardened raceways
- USA made
- Wheel hardness 70 Shore D
- Temperature range: -45°F to 180°F
- RoHS compliant zinc plate finish
Options
- Tread Lock Brake
- Tech Lock Brake
- Total Lock Brake
- Top Lock Brake
- Hand Activated Swivel Lock
- Foot Activated Swivel Lock
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 8"
Tread Width 2"
Brake No
Mounting Type Top Plate
Mounting Size 4" x 4-1/2"
Bolt Hole Pattern 3" x 3" to 2-5/8" x 3-5/8"
Wheel Material Polyolefin
Overall Height 9-1/2"
Load Capacity 900 lbs
Finish Zinc
Wheel Bearing Roller Bearing
