Product Description
Colson 4 Series 8" rigid caster- 8" x 2" round Performa Rubber wheel with roller bearings
- 600 pound capacity
- 9-1/2" mounting height

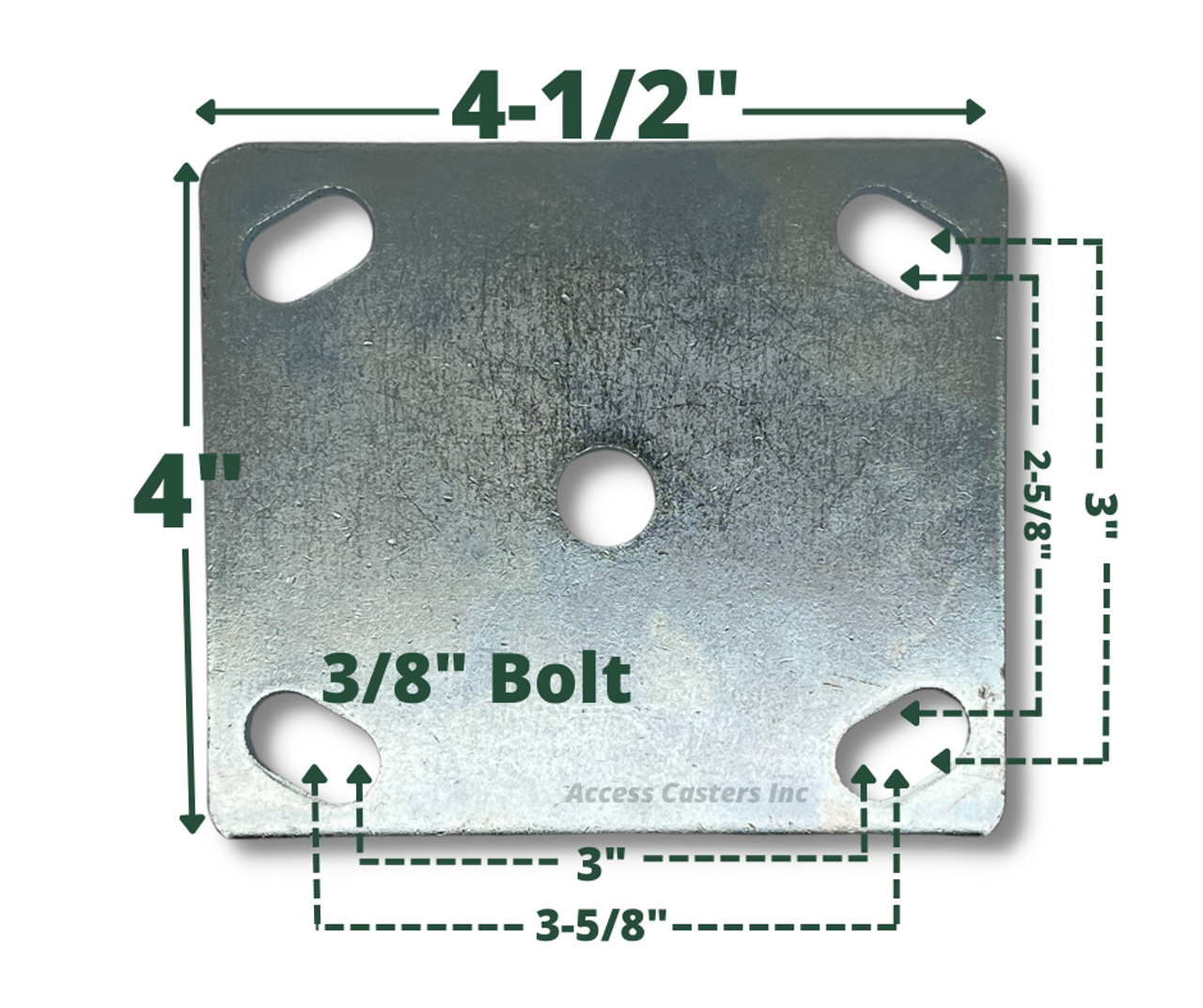

- 4" x 4-1/2" top plate
- 3" x 3" slotted to 2-5/8" x 3-5/8" bolt hole
- 1/4" thick steel top plate
- Grease fitting in axle and swivel section
- USA made
- Wheel hardness 65 Shore A
- Temperature range: -45°F to 180°F
- RoHS compliant zinc plate finish
Performa wheels offer the advantages of both hard and soft tread materials in a single wheel. Like a hard tread wheel, Performa rolls easily and is very durable. Like a soft tread wheel, it rolls quietly, protects floors and resists impact with a cushion ride. It also features maximum weatherability, low temperature flexibility, risistance to chemicals, water and steam, and reject floor debris such as metal shavings. Non-marking thermoplastic elastomer tread is permanently bonded to ribbed polyolefin wheel core.
In stock for prompt shipment.
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Rigid
Wheel Diameter 8"
Tread Width 2"
Brake No
Mounting Type Top Plate
Mounting Size 4" x 4-1/2"
Bolt Hole Pattern 3" x 3" to 2-5/8" x 3-5/8"
Wheel Material Rubber
Overall Height 9-1/2"
Load Capacity 600 lbs
Finish Zinc
Wheel Bearing Roller Bearing
