Product Description
Colson 4 Series 6" swivel caster- 6" x 2" polyurethane HI-TECH wheel with roller bearings
- 900 pound capacity
- 7-1/2" mounting height

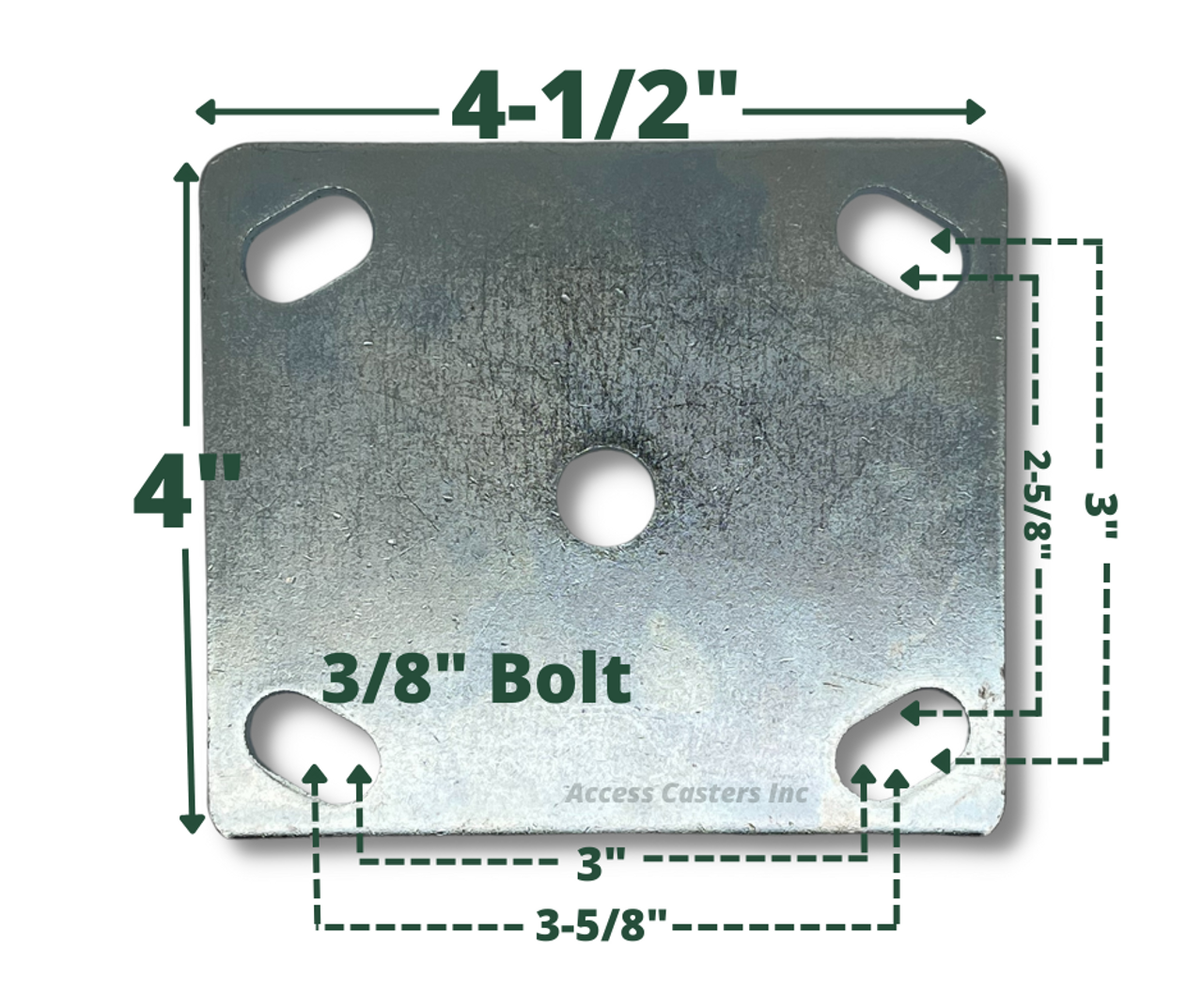

- 4" x 4-1/2" top plate
- 3" x 3" slotted to 2-5/8" x 3-5/8" bolt hole
- 1/4" thick steel top plate
- Grease fitting in axle and swivel section
- USA made
- Wheel hardness 55 Shore D
- Temperature range: -45°F to 180°F
- RoHS compliant zinc plate finish
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Rigid
Wheel Diameter 6"
Tread Width 2"
Brake No
Mounting Type Top Plate
Mounting Size 4" x 4-1/2"
Bolt Hole Pattern 3" x 3" to 2-5/8" x 3-5/8"
Wheel Material Polyurethane
Overall Height 7-1/2"
Load Capacity 900 lbs
Finish Zinc
Wheel Bearing Roller Bearing
