Product Description
- Colson 6" rigid caster
- 6" x 2" cast iron v-groove wheel
- Roller bearings in wheel
- 3/4" wide, 3/8" deep v-groove
- Recommended track size 1-1/2" x 1-1/2"
- 1200 pound capacity
- 7-1/2" mounting height

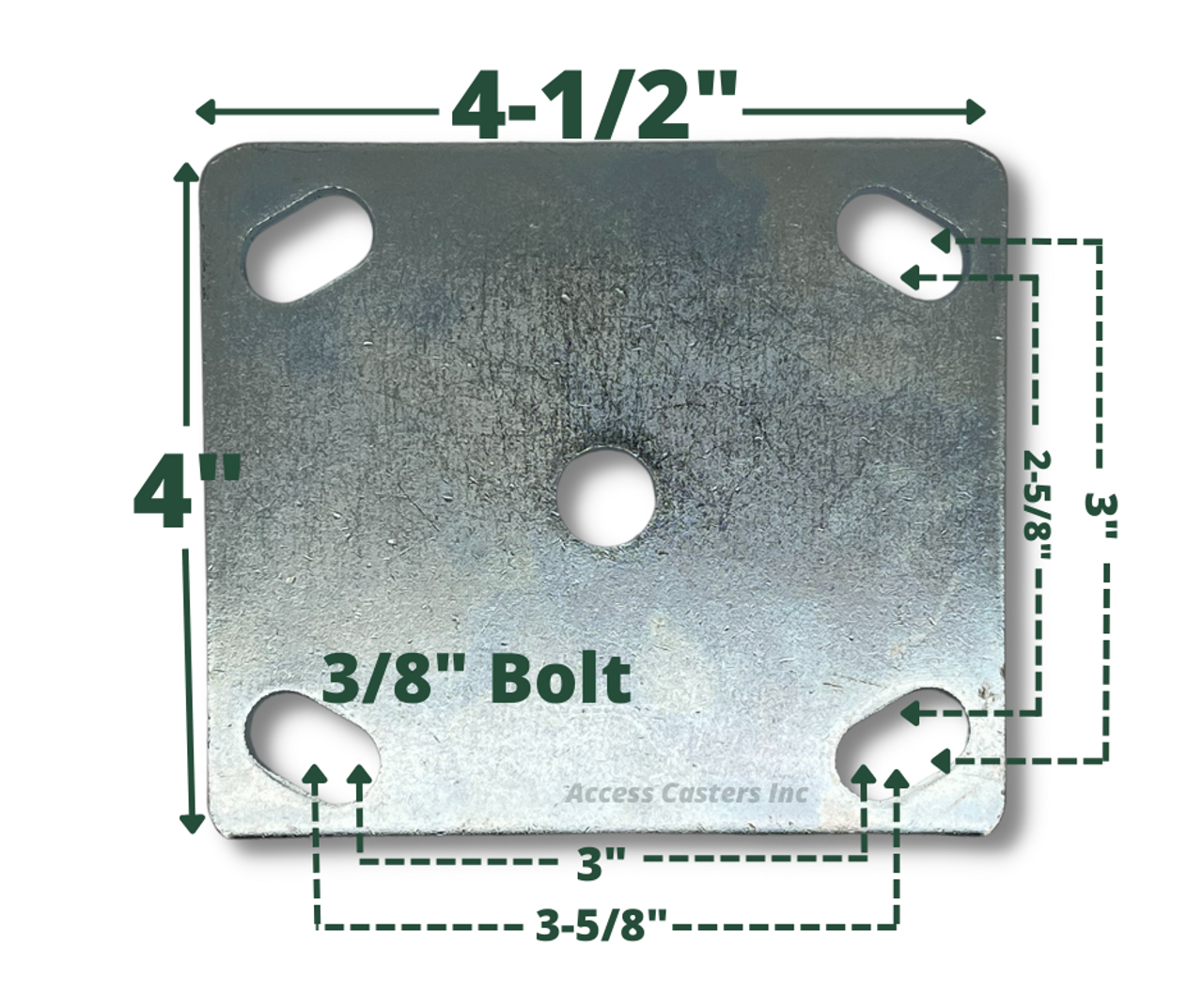

- 4" x 4-1/2" top plate
- 3" x 3" slotted to 2-5/8" x 3-5/8" bolt hole pattern
- RoHS zinc plated rig
- 9-3/4" unit weight
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Rigid
Wheel Diameter 6"
Tread Width 2"
Brake No
Mounting Type Top Plate
Mounting Size 4" x 4-1/2"
Bolt Hole Pattern 3" x 3" to 2-5/8" x 3-5/8"
Wheel Material Cast Iron
Overall Height 7-1/2"
Load Capacity 1,200 lbs
Finish Zinc
Wheel Bearing Roller Bearing
