Product Description

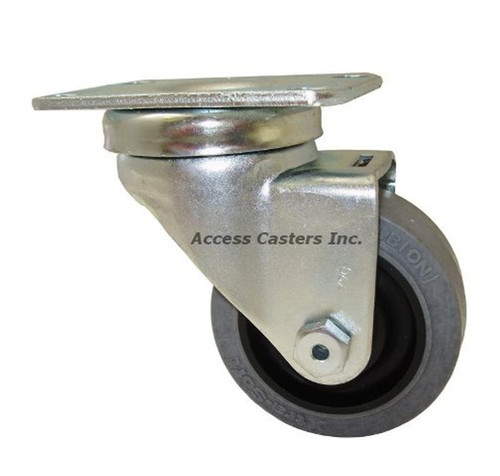

3" Anti-Static Swivel Caster
3" x 1-1/4" Gray conductive rubber wheel with annular ball bearings
190 pound capacity
4-7/16" mounting height
2-1/2" x 3-5/8" top plate
1-3/4" x 2-13/16" to 3-1/16" bolt holes
Chrome plated construction
Conforms to CEN standards with resistance
values <10,000 ohms (measured at 500V DC, with minimum output of 50V DC at 1,000 ohms resistance).
Standard lead time is one week to ship.
Optional stems are available.
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 3"
Tread Width 1-1/4"
Brake No
Mounting Type Top Plate
Mounting Size 2-1/2" x 3-5/8"
Bolt Hole Pattern 1-3/4" x 2-13/16" to 1-3/4" x 3-1/16"
Wheel Material Rubber
Overall Height 4-7/16"
Load Capacity 190 lbs
Finish Chrome
Wheel Bearing Ball Bearing
