Product Description
3" Soft Rubber Single Wheel
Rigid Caster
110 lbs load capacity
3 1/2" mounting height
Zinc finish, Double ball bearing raceways
Heat treated raceways for increased wear resistance
NSF approved less thread guards
RoHS compliant
Plate size available
2 5/8 X 3 3/4
Must purchase Carton Quantities of 40 or more
Used for Display and Store Fixtures, Carts, Institutional Equipment,
Medical Equipment, and Furniture
Rigid Caster
110 lbs load capacity
3 1/2" mounting height
Zinc finish, Double ball bearing raceways
Heat treated raceways for increased wear resistance
NSF approved less thread guards
RoHS compliant
Plate size available
2 5/8 X 3 3/4
Must purchase Carton Quantities of 40 or more
Used for Display and Store Fixtures, Carts, Institutional Equipment,
Medical Equipment, and Furniture
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 3"
Tread Width 13/16"
Brake No

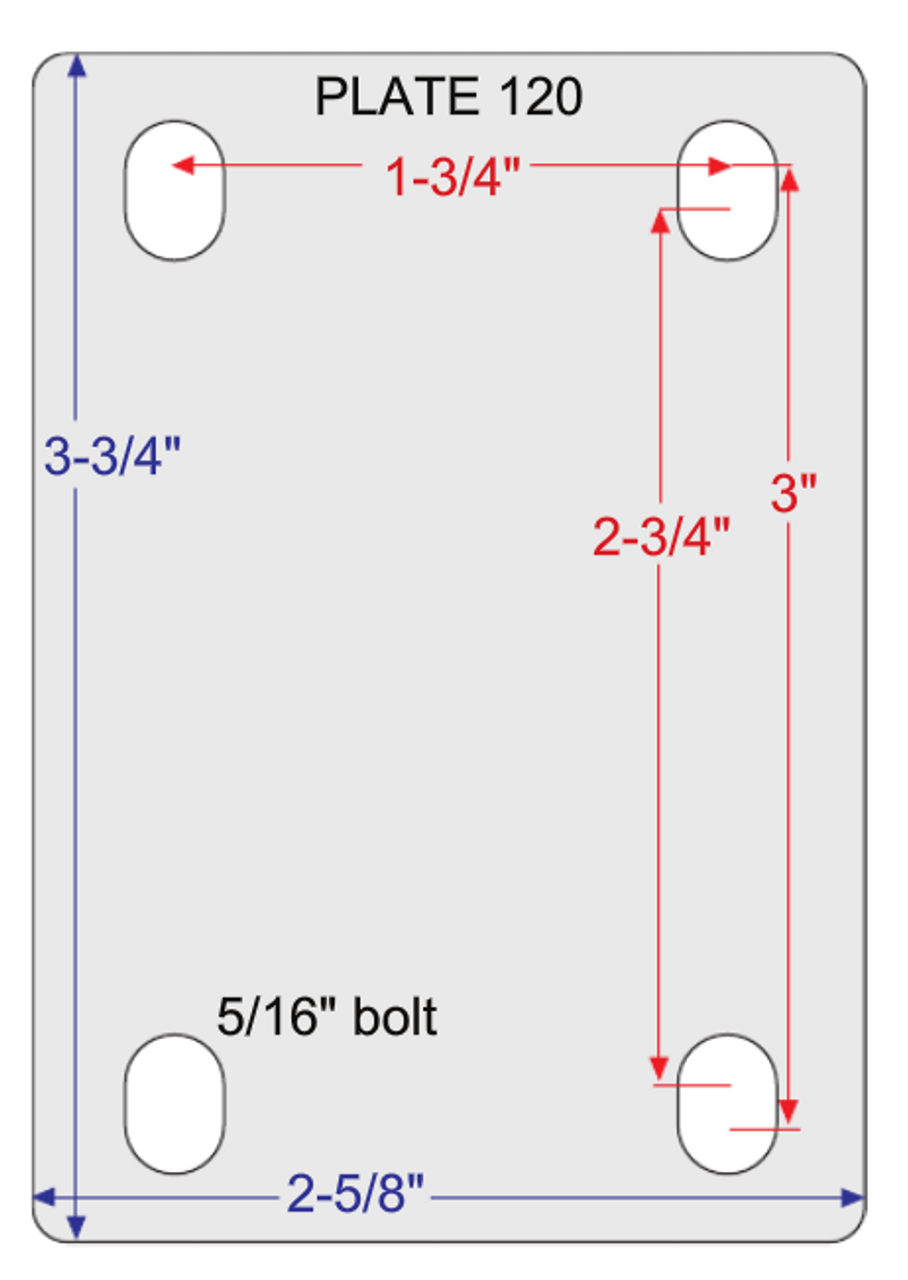

Mounting Type Top plate
Mounting Size 2-5/8" x 3-3/4"
Bolt Hole Pattern 1-3/4" x 2-3/4"
Wheel Material Soft Rubber
Overall Height 3-1/2"
Load Capacity 110 lbs
Finish Zinc
Wheel Bearing Plain
