Product Description
3" X 1-1/4" Hard Rubber Wheel
Swivel Caster with Brake
220 lbs load capacity
zinc finish
4-1/16" mounting height

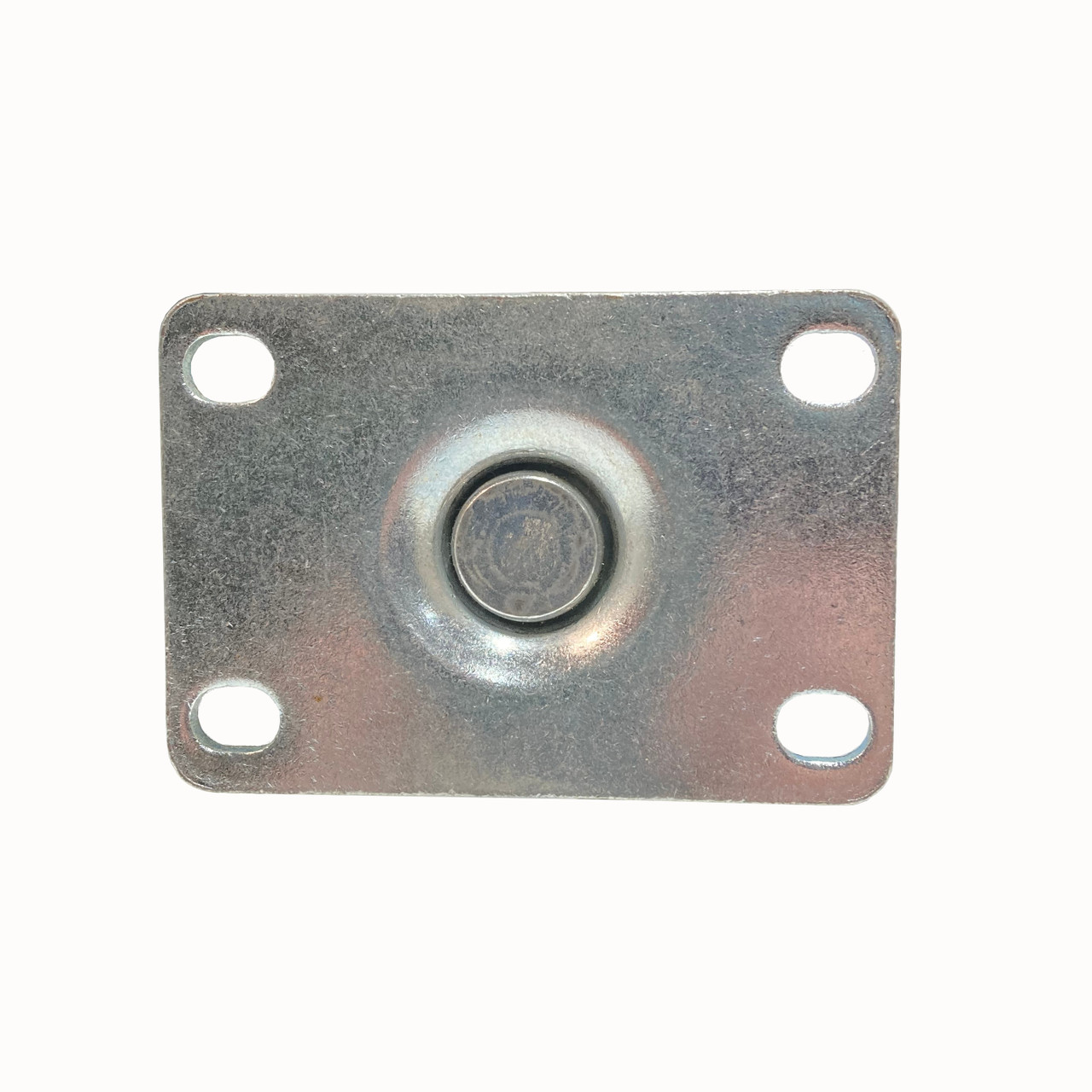

Standard Top plate (A1)
2-1/2" x 3-5/8" top plate
1-3/4" x 2-11/16" to 3" bolt hole pattern
for 5/16" mounting bolts
Optional plate sizes (A2)
3-1/8" x 4-1/8" top plate
1-3/4" x 2-15/16" to 2 3/8" x 3 3/8" bolt hole pattern
for 3/8" mounting bolts
Optional plate sizes (A3)
4" x 4-1/2" top plate
2-5/8" x 3-5/8" to 3" x 3" bolt hole pattern
for 3/8" mounting bolts
Used for Hotel Equipment, Institutional Equipment, Food Service Equipment, Stock Carts, and Laundry Truck Applications. Smooth rolling and highly maneuverable. Reference 80/20 caster 2312
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 3"
Tread Width 1-1/4"
Brake Yes
Mounting Type Top Plate
Mounting Size 2-1/2" x 3-5/8"
Bolt Hole Pattern 1-3/4" x 2-11/16" to 3"
Wheel Material Hard Rubber
Overall Height 4-1/16"
Load Capacity 220 lbs
Finish Zinc
Wheel Bearing Plain
