Product Description

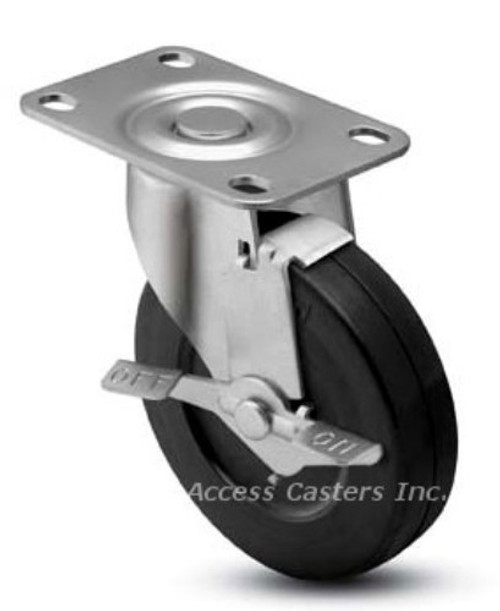

3 1/2" X 1 1/4" Hard Rubber Wheel
Swivel Caster with Brake
225 lbs load capacity
Zinc Finish
Swivel Caster with Brake
225 lbs load capacity
Zinc Finish
Used for Hotel Equipment, Institutional Equipment, Food Service Equipment, Stock Carts, and Laundry Truck Applications. Smooth rolling and highly maneuverable.
A1 is the standard top plate. If no top plate is selected, then the A1 top plate will be shipped. Please select or email your top plate size choice.
A1 is the standard top plate. If no top plate is selected, then the A1 top plate will be shipped. Please select or email your top plate size choice.
Plate Dimension Choices:
(A1)
Overall Size: 2 3/8" X 3 5/8"
Bolt Hole Spacing: 1 3/4" X 2 11/16" to 2 15/16"
Attaching Bolt Size: 5/16"
(A2)
Overall Size: 3 1/8" X 4 1/8"
Bolt Hole Spacing: 1 3/4" X 2 15/16" to 2 3/8" X 3 3/8"
Attaching Bolt Size 3/8"
(A3)
Overall Size: 3 15/16" X 4 1/2"
Bolt Hole Spacing: 2 5/8" X 3" to 3" X 3"
Attaching Bolt Size: 3/8"
(A1)
Overall Size: 2 3/8" X 3 5/8"
Bolt Hole Spacing: 1 3/4" X 2 11/16" to 2 15/16"
Attaching Bolt Size: 5/16"
(A2)
Overall Size: 3 1/8" X 4 1/8"
Bolt Hole Spacing: 1 3/4" X 2 15/16" to 2 3/8" X 3 3/8"
Attaching Bolt Size 3/8"
(A3)
Overall Size: 3 15/16" X 4 1/2"
Bolt Hole Spacing: 2 5/8" X 3" to 3" X 3"
Attaching Bolt Size: 3/8"
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 3-1/2"
Tread Width 1-1/4"
Brake Yes
Mounting Type Top Plate
Mounting Size 2-3/8" x 3-5/8"
Bolt Hole Pattern 1-3/4" x 2-11/16 to 2-15/16""
Wheel Material Hard Rubber
Overall Height 4-1/4"
Load Capacity 225 lbs
Finish Zinc
Wheel Bearing Plain
