Product Description

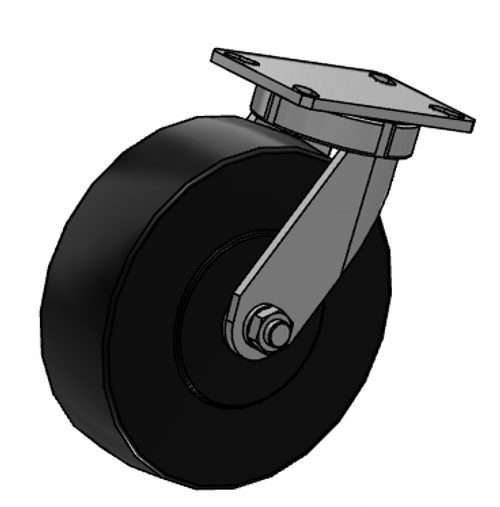

Albion kingpinless stainless steel swivel caster
8" x 3" Trionix NX high impact polymer wheel with sealed precision ball bearings
3,000 pound load rating
10-1/8" mounting height
4-1/2" x 6-1/4" top plate
2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" bolt holes for 1/2" mounting bolts
304 stainless steel construction
3/4" axle
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 8"
Tread Width 3"
Brake No
Mounting Type Top Plate
Mounting Size 4-1/2" x 6-1/4"
Bolt Hole Pattern 2-7/16" x 4-15/16" to 3-5/8" x 5-1/4"
Wheel Material Nylon
Overall Height 10-1/8"
Load Capacity 3,000 lbs
Finish Stainless Steel
Wheel Bearing Sealed Precision Ball Bearings
