Product Description
|

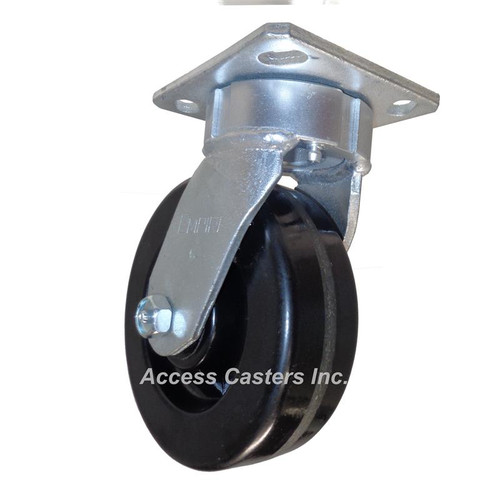

6" x 3" Phenolic wheel
Kingpinless Swivel Caster 2000 lbs load capacity 7 1/2" overall height 4 1/2" x 6 1/4" overall plate size Roller Bearing
5/16" AISI 1045 heat treated steel. Used for Conveyor-drawn tow trucks, heavy duty bakery racks, production dollies, heavy duty dough troughs, etc.
|
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 6"
Tread Width 3"
Brake No
Mounting Type Top Plate
Mounting Size 4-1/2" x 6-1/4"
Bolt Hole Pattern 3-3/8" x 5-1/4" to 2-7/16" x 4-15/16"
Wheel Material Phenolic
Overall Height 7-1/2"
Load Capacity 2,000 lbs
Finish Zinc
Wheel Bearing Roller Bearing
